- BMW TMS Headlight Driver Module 7316217 7329157 7305235 7304905 7279625
Product Tags
Use spaces to separate tags. Use single quotes (') for phrases.
Product Description

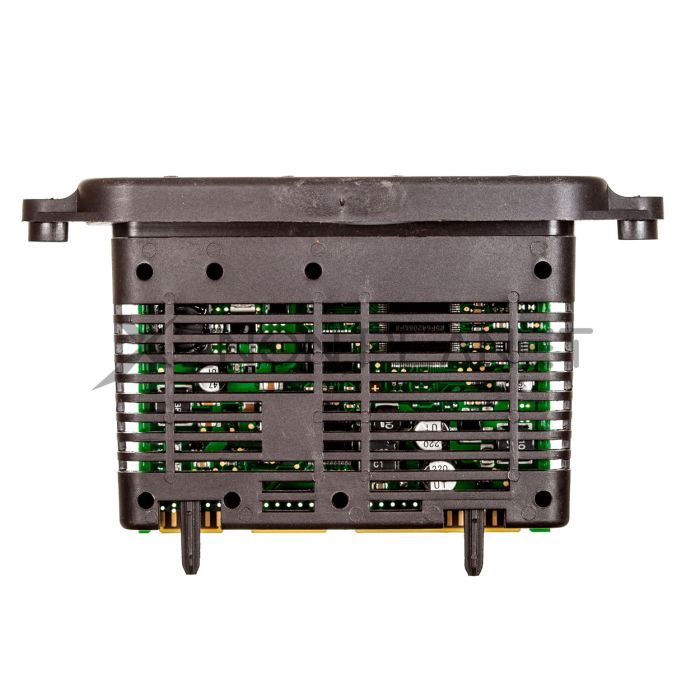

BMW F10 F11 F07 GT ballast for LEAR TMS Headlight Driver Module 7316217 7329157 7305235 7304905 7279625.
TMS driver module is direct replacement for old xenon light headlight ballast.
Module is responsible for many different functions of the headlamp, we have described some of the malfunctions to identify when module is required to be replaced.
If Xenon Light levelling also known as vertical aim doesn't work or shows vertical aim failure error, front turn signal indicators or Angel Eyes Halo Rings have stopped to work, you will need to replace TMS 7305235, 7304905, 7329157 module.
These are just few simple malfunctions by which you can identify the problem, but ofcourse you might get different on-board errors as well.
Just simplly by swaping TMS driver module with new, you will save a fortune, because BMW dealer always suggests to buy brand new headlight housing.
BMW 5 series F10, F11, F07 GT cars must have Xenon headlights with D1S HID bulbs.
Coding is required after replacing old faulty genuine BMW 7316217 7329157 7305235 7304905 7279625 LEAR TMS Headlmap driver module.
The most common diagnostic trouble fault codes
- 800FC3 Initialization fault in left headlamp driver module
- 800FCC Coding errors in the right headlamp driver module
- 800FC2 Initialization fault in right headlamp driver module
- 800FC3 Initialisation fault in headlight driver module left
- 800FC2 Initialisation fault in headlight driver module right
- 800FC2 Coding errors in the right headlamp driver module
- 800FC7 Internal fault in STML (Left hand headlamp driver module)
- 800FC8 Internal fault in STML (Right hand headlamp driver module)
- 800FC7 lin bus, headlight driver module (TMS) right, communication fault
- 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
- 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
- 800F86 Daytime Driving Light / Side Light, left, faulty
- 800F86 Daytime running light/left parking defect
- 800F87 Daytime Driving Light / Side Light, right, faulty
- 800F87 Daytime running light/right parking defect
- 800F88 Output daytime driving light / side light, left, short-circuited
- 800F89 Output daytime driving light / side light, right, short-circuited
- 800FCB Headlight driver module (TMS), left, faulty
- 800FCE Headlight driver module (TMS), right, faulty
- 800FC0 LWR fault in headlight driver module, right
- 800FC1 LWR fault in headlight driver module, right
- 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
- 800F40 Direction Indicator, Front Left, Faulty
- 800FD0 Design/Side Marker Light, Left, Faulty
- 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
- 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
- 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
- 800F8D Abbiegelicht rechts defekt
- 800FC9 LIN-Bus Scheinwerfertreibermodul (TMS) rechts: Kommunikationsfehle
- 800FC6 Internal fault in the right headlamp module
- 800FC3 Initiaztion Fault in Headlight Driver Module Left
- 800FB6 Initiaztion Fault in Headlight Driver Module Right
- 800FC8 LIN bus headlight driver module TMS left communication fault
- 800FC7 Left Headlight Driver Module TMS Internal Error
- 800FC6 Right Headlight Driver Module TMS Internal Error
- 800FC3 Headlight Driver Module TMS left Coding error or timeout
- 800FC2 Headlight Driver Module TMS right Coding error or timeout
- 800FC8 LM_LIN bus error TMS Left.
- 800FC2 Defaut d'initialisation dan le module pilote de phare droite
