- 7316144 7304062 AHLF20 TMS Headlight Driver Module
Product Tags
Use spaces to separate tags. Use single quotes (') for phrases.

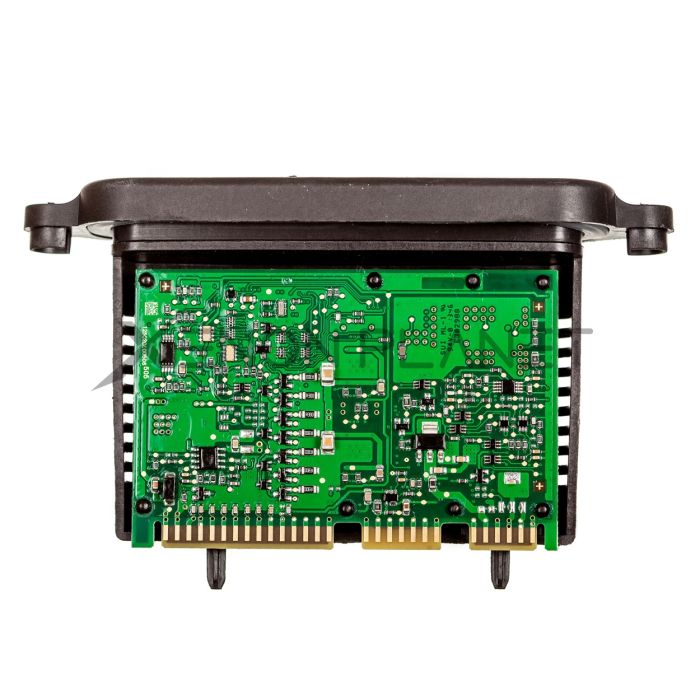

BMW 63117316144 LEAR TMS LED Headlight Driver module to replace faulty 7316144 7304062 7305238 ballast.
It fits BMW 1 Series F20 F21 with Bi-Xenon Light headlamps.
Driver module needs to be replaced when you are getting various malfuction errors such as vertical aim failure error, low or high beam can't move up or down, but just stays looking down and not move up, red headlight icon, headlamp warning light malfunction error, AFS adaptive headlight failure error, LED Angel Eyes Daytime Driving Lights don't work at all or flickering, front turn signal (indicators) don't work.
There could be other type of faults or errors when headlight module fails.
No need to buy whole headlight housing as BMW dealer suggests, just replace LEAR TMS BIX module and it will fix all of these issues.
Each headlight uses one TMS LEAR module.
It could be used on the left or right (passenger or driver) side headlight.
LEAR part numbers:
- 7316144
- 7304062
- 7305238
BMW part numbers:
- 63117316144
- 63117304062
- 63117305238
BMW compatibility list:
- 1 Series F20 2010, 2011, 2012, 2013, 2014, 2015
- 1 Series F21 2010, 2011, 2012, 2013, 2014, 2015
