7258278 535051807 HAL TMS module

7258278 535051807 HAL TMS Headlight Driver Module

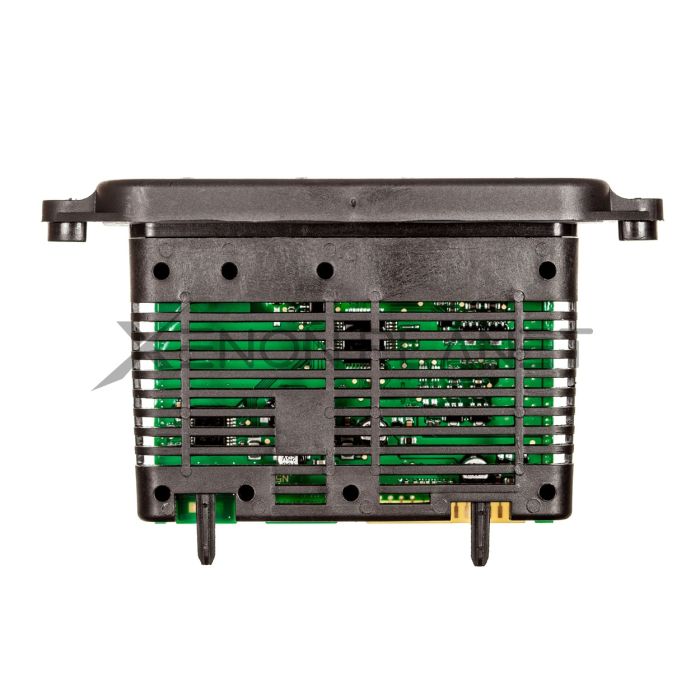

LEAR 535051807 TMS module is factory fitted on BMW 5 Series F10 F11 F07 GT Pre-Facelift with halogen headlamps.

BMW 7258278 TMS ballast is used with halogen light headlamps.

Below we have described few common malfunctions, which are experienced when tms module fails.

LEAR 535051807 TMS ballast also known as headlight module is responsible for controlling vertical aim on 5 Series BMW vehicles, if your headlamp's vertical aim isn't working anymore and you see headlight vertical aim failure error on the dashboard, you will need to replace headlight module.

The most common diagnostic trouble fault codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature)
• 800FC5 Ambient errors in the left headlamp driver module (over / under voltage, over temperature)
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit

The most common BMW warning messages

• Side/Daytime lights fault
• Parking/Daytime Lights
• Daytime/parking lamp malfunction
• Left turn signal malfunction
• Right turn signal malfunction
• Turn indicator front left failure
• Turn indicator front right failure
• Adaptive headlights failure
• Headlight Vertical Aim Control Failure
• Side/Daytime Lights on left fault!
• Side/Daytime Lights on right fault!
• Side/daytime lights
• Side and daytime driving lights on left failed.
• Side and daytime driving lights on right failed
• Have the problem checked by the nearest BMW service
• Stand-/Tagfahrlicht links ausgefallen!
• Stand-/Tagfahrlicht rechts ausgefallen!
• Stand-/Tagfahrlicht defekt
• Standlicht und Tagfahrlicht defekt

Hella headlight part numbers:

• Right side: 1LL 010 131-041, 63117203242, 7203242
• Left side: 1LL 010 131-031 63117203241, 7203241

BMW part numbers:

• 7258278 01725827801
• 7258278 02 725827802

LEAR part numbers:

• 535051807 01 53505180701
• 535051807 00 53505180700

Compatible BMW cars:

• 5 Series F10 Pre-Facelift SE Sedan Saloon 2010, 2011, 2012, 2013
• 5 Series F11 Pre-Facelift Touring Estate 2010, 2011, 2012, 2013
• 5 Series F07 GT Gran Turismo Pre-Facelift 2008, 2009, 2010, 2011, 2012, 2013
• 520i 523i 528i 528xi 530i 535i 550i petrol
• 520d 525d 530d 535d M-Sport diesel
