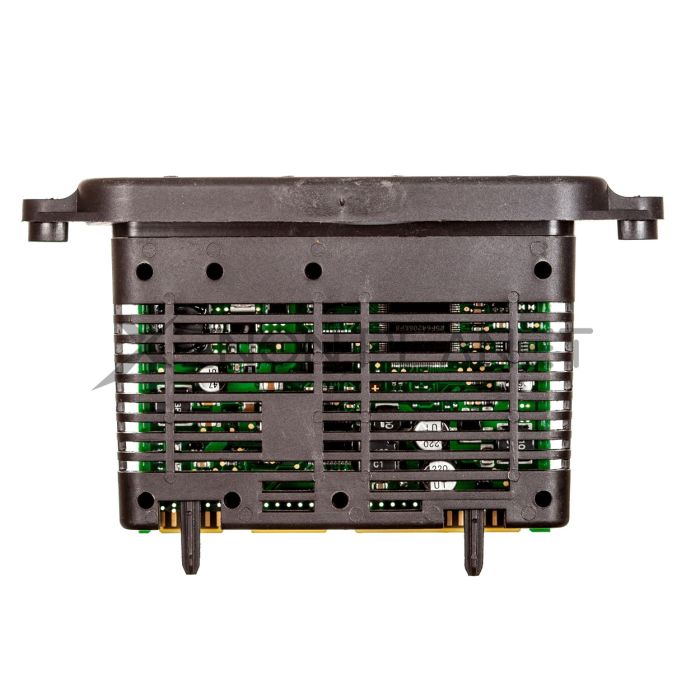

7269494 532385808 AHL TFL TMS Headlight Driver Module

7269494 532385808 AHLTFL TMS Headlight Driver Module

532385808 TMS module is direct replacement for bmw or lear brand headlight ballast.

There are many different malfunctions when lear headlight driver module fails.

If both Angel Eyes (halo rings) have stopped to work at the same time, you are seeing vertical aim failure error on the dashboard, front turn signal doesn't work it means that module has failed and needs to be replaced as soon as possible.

To fix any of these above malfunctions you will need just to replace faulty TMS 7269494 module, there is no need to buy brand new headlamp unit as dealer suggests.

BMW 5 series F10, F11, F07 GT cars must have Xenon adaptive headlights with D1S 35W hid bulbs.

We have collect many compatible part numbers, all of them could be find below at the part numbers list.

There are few different models of TMS module, below you will find a list of them as well.

BMW DTC Diagnostic Trouble Codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 800F8D Abbiegelicht rechts defekt
• 800FC9 LIN-Bus Scheinwerfertreibermodul (TMS) rechts: Kommunikationsfehle

The most common BMW warning messages

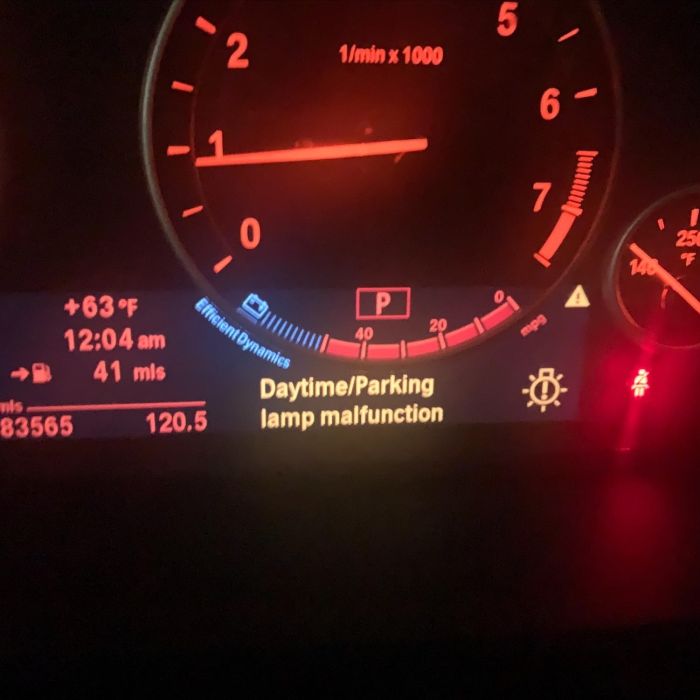

• Daytime/parking lamp malfunction
• Parking/daytime lights
• Left turn signal malfunction
• Right turn signal malfunction
• Turn indicator front left failure!

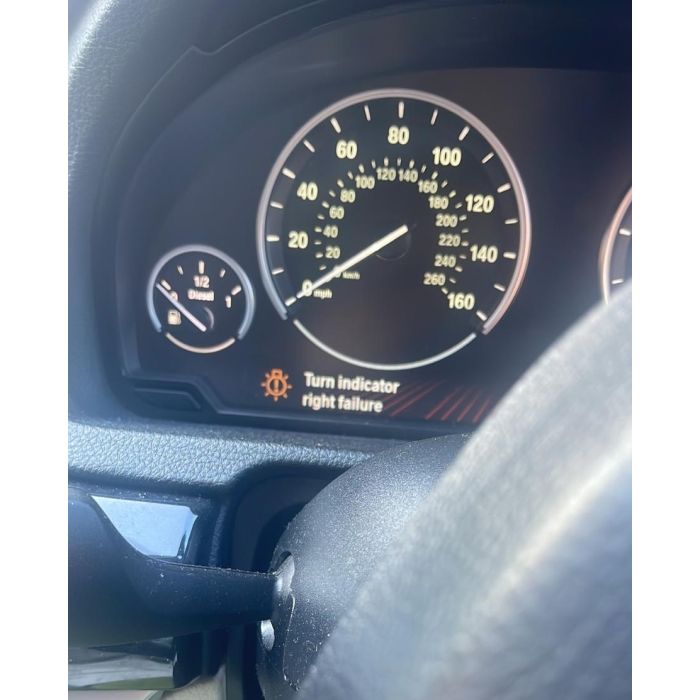

• Turn indicator front right failure!
• Side/Daytime Lights on left fault!
• Side/Daytime Lights on right fault!

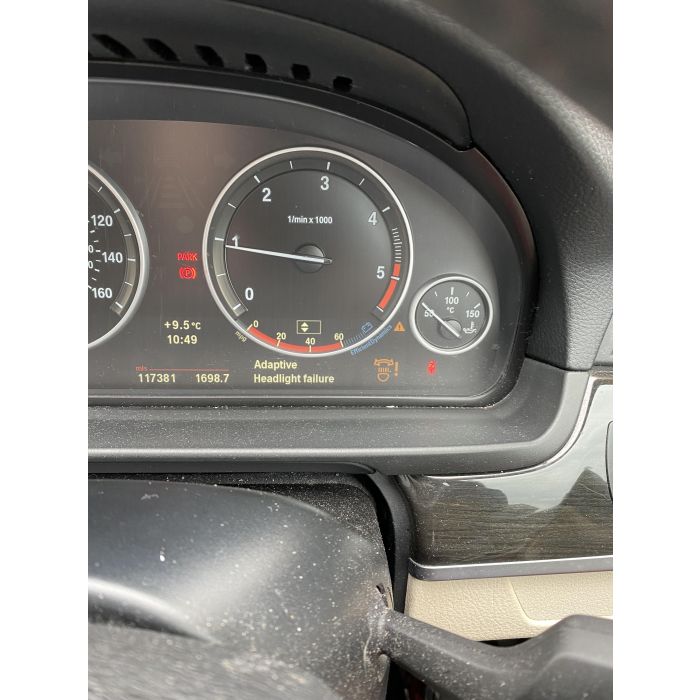

• Adaptive headlights failure
• Adaptive headlight malfunction

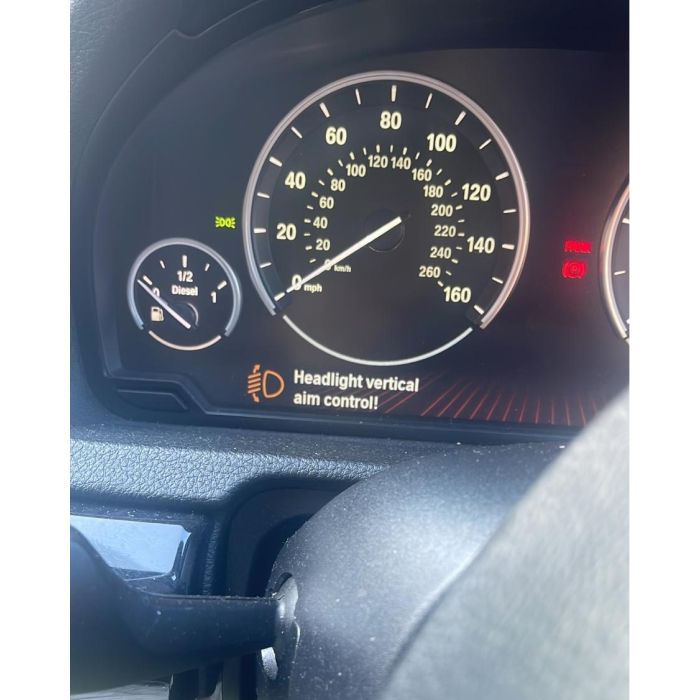

• Headlight Vertical Aim Control Failure
• Headlamp vertical aim control malfunction
• Side/daytime lights fault
• Left Cornering light failure
• Right cornering light failure
• Adaptive Lichtsysteme defekt
• Leuchtweiten-Regulierung defekt
• Leuchtweitenregulierung defekt

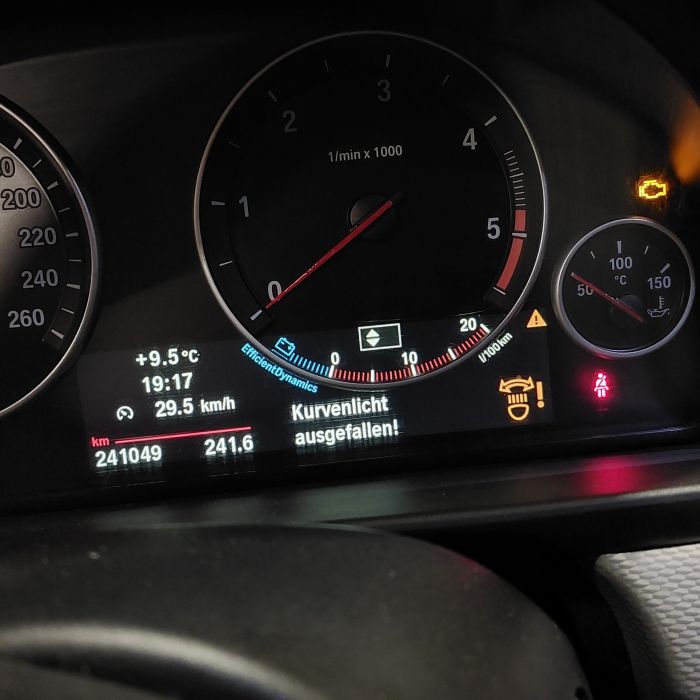

• Kurvenlicht ausgefallen!
• Leuchtweiten-regulierung gestort!
• Blinker vorn links defekt
• Blinker vorn rechts defekt
• Blinker links defekt
• Blinker rechts defekt
• Veilleuse/feu croisement jour def.! defectueux
• Phares directionnels gauches défectueux
• Phares directionnels droits défectueux
• Clignotant gauche defectueux
• Clignotant droite defectueux
• Defaut reglage portee des phares!
• Reglage portee des phares defectueux
• Clignotant avant gauche defectueux
• Clignotant avant droite defectueux
• Parkeringsljus/varselljus defekt
• Blinkers vanster fram defekt
• Blinkers höger fram defekt
• Ljusviddsreglering defekt
• Ljus Vid Reglering defekt
• Kurvljus defekt
• Anomalia no controlo da altura dos farois!
• Pisca esquerdo com falhas
• Pisca direito com falhas
• Pisca Certo com falhas
• Pisca luzes conduc diurna com falhas
• Pisca/luzes conduc. diurna com falhas
• Pisca dianteiro esq. nao funciona
• Pisca dianteiro dir. nao funciona
• Eclairage virage defectueux
• Stand-/Tagfahrlicht links ausgefallen!
• Stand-/Tagfahrlicht rechts ausgefallen!
• Stand-/Tagfahrlicht defekt
• Standlicht und Tagfahrlicht defekt
• Leuchtweitenregulierung der scheinwerfer defekt
• iLuz de pos. y cond. diurna der. averiada!
• iLuz de pos. y cond. diurna izq. averiada!
• Luz de posición y conducción diurna derecho averiada
• Luz de posición y conducción diurna izquierda averiada
• iRegulacion alcance luces!
• Fallo regulacion alcance luces
• Fallo de la luz de curvas
• Alcance de luces
• Panne veilleuse/feu croisement jour D!
• Avaria luce posizione e luce diurna!
• Avaria regolazione altezza fari!
• Indicatore direzione sinistro guasto
• Indicatore direzione destro guasto
• Parkeer- en dagrijlicht defect
• Richtingaanwijzer links defect
• Richtingaanwijzer rechts defect
• Richtingaanwijzer linksvoor defect
• Richtingaanwijzer rechtsvoor defect
• Defect koplampafstelling

BMW part numbers:

• 7269494 02
• 726949402

LEAR part numbers:

• 532385808 05 53238580805
• 532385808 03 53238580803

Compatible BMW F10 F11 F07 GT headlamps part numbers

• 1EL010131-22/AL 7203246-13
• 1EL010131-22/AP 7203246-17
• 1EL010131-22/AM 7203246-14
• 1LL011087-23/AF 7317133-05
• 1LL010130-23/AV 7199609-22
• 1LL010130-23/AP 7199609-16
• 1LL010130-23/AR 7199609-18
• 1LL010131-54
• 1LL010131-531
• 1LL010131-04/AL 7203242-11
• 1LL010131-03/AL 7203241-11
• 1LL010131-23/AJ 7203247-11
• 1LL010131-24/AJ
• 1ZS010130-44/AM 7199616-13
• 1ZS010130-44/AK 7199616-11
• 1ZS010131-41/AK
• 1ZS010131-44/AS 7203254-20 7203248-11 7203254-20
• 1ZS010131-44/AM
• 1ZS010130-41/AG 7199613-07
• 1ZS010131-41/AP 7203254-17
• 1ZS010131-44/AT 7203254-21
• 1ZS010131-41/AM 7203251-14
• 1ZS010131-41/AI 7203251-10
• 1ZS010131-41/AK 7203251-12
• 1ZS010131-42/AI 7203252-10
• 1ZS010131-43/AJ 7203253-11
• 1ZS010131-45/AM 7203255-14
• 1ZS010131-46/AN 7203256-15
• 1ZS010131-46/AJ 7203256-11
• 1ZS010131-46/AT 7203256-21
• 1ZS010131-66
• 1ZS010131-65/AJ 7271903-07

Compatible BMW cars:

• 5 Series F10 Pre-Facelift 2010, 2011, 2012, 2013
• 5 Series F11 Pre-Facelift 2010, 2011, 2012, 2013
• 5 Series F07 GT Gran Turismo Pre-Facelift & Facelift 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017
• 520i 523i 528i 528xi 530i 535i 550i M5 petrol gasoline
• 520d 525d 530d 535d M5, M Sport diesel xDrive
