7269531 532384808 BIX TFL TMS Module

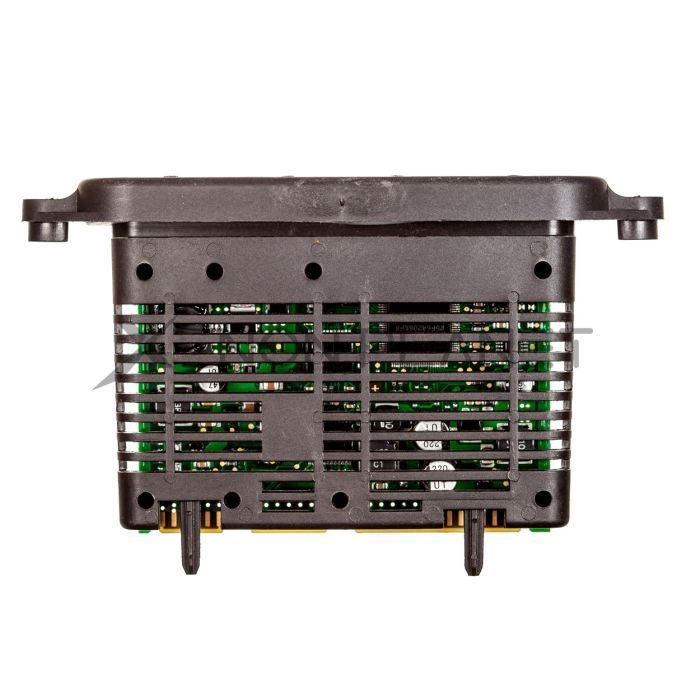

7269531 532384808 BIX TFL TMS Headlight Driver Module

532384808 BIX TFL TMS module is direct replacement to faulty genuine bmw or lear 7269531 headlight ballast.

There are many different malfunctions when lear headlight driver module fails.

If both Angel Eyes (halo rings) have stopped to work at the same time, you are seeing vertical aim failure error on the dashboard, front turn signal doesn't work it means that module has failed and needs to be replaced as soon as possible.

To fix any of these above malfunctions you will need just to replace faulty TMS 7269531 module, there is no need to buy brand new headlamp unit as dealer suggests.

BMW 5 series F10, F11, F07 GT cars must have Xenon adaptive headlights with D1S 35W hid bulbs.

We have collect many compatible part numbers, all of them could be find below at the part numbers list.

There are few different models of TMS module, below you will find a list of them as well.

The most common diagnostic trouble fault codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FCC Coding errors in the right headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC2 Coding errors in the right headlamp driver module
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F86 Daytime running light/left parking defect
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F87 Daytime running light/right parking defect
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 800F8D Abbiegelicht rechts defekt
• 800FC9 LIN-Bus Scheinwerfertreibermodul (TMS) rechts: Kommunikationsfehle
• 800FC6 Internal fault in the right headlamp module

The most common BMW warning messages

• Daytime/parking lamp malfunction
• Parking/daytime lights
• Left turn signal malfunction
• Right turn signal malfunction
• Turn indicator front left failure!
• Turn indicator front right failure!
• Turn indicator left failure
• Turn indicator right failure
• Side/Daytime Lights on left fault!
• Side/Daytime Lights on right fault!
• Adaptive headlights failure
• Adaptive headlight malfunction
• Headlight Vertical Aim Control Failure
• Headlamp vertical aim control malfunction
• Side/daytime lights fault
• Left Cornering light failure
• Right cornering light failure
• Adaptive Lichtsysteme defekt
• Leuchtweitenregulierung defekt
• Kurvenlicht ausgefallen!
• Leuchtweiten-regulierung gestort!
• Blinker vorn links defekt
• Blinker vorn rechts defekt
• Blinker links defekt
• Blinker rechts defekt
• Veilleuse/feu croisement jour def.! defectueux
• Phares directionnels gauches défectueux
• Phares directionnels droits défectueux
• Clignotant gauche defectueux
• Clignotant droite defectueux
• Reglage portee des phares defectueux
• Defaut reglage portee des phares!
• Clignotant avant gauche defectueux
• Clignotant avant droite defectueux
• Parkeringsljus/varselljus defekt
• Blinkers vanster fram defekt
• Blinkers höger fram defekt
• Ljusviddsreglering defekt
• Ljus Vid Reglering defekt
• Kurvljus defekt
• Anomalia no controlo da altura dos farois!
• Pisca esquerdo com falhas
• Pisca direito com falhas
• Pisca Certo com falhas
• Pisca luzes conduc diurna com falhas
• Pisca/luzes conduc. diurna com falhas
• Pisca dianteiro esq. nao funciona
• Pisca dianteiro dir. nao funciona
• Eclairage virage defectueux
• Stand-/Tagfahrlicht links ausgefallen!
• Stand-/Tagfahrlicht rechts ausgefallen!
• Stand-/Tagfahrlicht defekt
• Standlicht und Tagfahrlicht defekt
• Leuchtweitenregulierung der scheinwerfer defekt
• iLuz de pos. y cond. diurna der. averiada!
• iLuz de pos. y cond. diurna izq. averiada!
• Luz de posición y conducción diurna derecho averiada
• Luz de posición y conducción diurna izquierda averiada
• iRegulacion alcance luces!
• Fallo regulacion alcance luces
• Fallo de la luz de curvas
• Alcance de luces
• Panne veilleuse/feu croisement jour D!
• Avaria luce posizione e luce diurna!
• Avaria regolazione altezza fari!
• Indicatore direzione sinistro guasto
• Indicatore direzione destro guasto
• Parkeer- en dagrijlicht defect
• Richtingaanwijzer links defect
• Richtingaanwijzer rechts defect
• Richtingaanwijzer linksvoor defect
• Richtingaanwijzer rechtsvoor defect
• Defect koplampafstelling
• Regulacja zasiegu swiatel niesprawn!
• Awaria prawego sw. pozycyjn/dziennego!
• Swiatlo pozycyjne/dzienne uszkodzone
• Awaria lewego kierunkowskazu
• Awaria prawego kierunkowskazu
• Awaria sw. doswietlajacych zakrety!

BMW part numbers:

• 7269531 01 726953101
• 7269531 02 726953102
• BIX/TFL
• BIXTFL

LEAR part numbers:

• 532384808 05 53238480805
• 532384808 03 53238480803
• 532384808 04 53238480804

More compatible BMW part numbers:

• 7262949 02 726294902
• 532384807 04 53238480704
• 7304592 02 730459202
• 535211802 01 53521180201
• 535211802 00 53521180200
• 7304593 02 730459302
• 535212802 00 53521280200
• 535212802 01 53521280201
• 7316208 01 535212803 01 53521280301
• 7316208 03 731620803
• 535212805 07 53521280507
• 7269494 01 7269494 02
• 63117269531
• 7269531 01 726953101
• 7269531 02 726953102
• 532384808 05 53238480805
• 532384808 03 53238480803
• 532384808 04 53238480804
• 63117279625 7279625
• 63117274400 7274400
• 63117316217 7316217 03 731621703
• 5352118A7 10 5352118A710
• 63117329157 7329157
• 5352118A7 01 5352118A701
• 5352118A7 05 5352118A705
• 63117305235 7305235
• 63117304905 7304905
• 63117267044 7267044
• 7262947 03 726294703
• 7262947 02 726294702

More compatible LEAR part numbers:

• 532385807 04 53238580704
• 532385807 02 53238580702
• 532385807 03 53238580703
• 535211805
• 535211807
• 532386808
• 532385808 03 53238580803
• 535212803 01 53521280301
• 535211804 01 53521180401
• 535212804 00 53521280400
• 535211801 01 53521180101

Compatible BMW 5 series F10 F11 F07 GT Pre-Facelift D1S headlamps

• 1EL010131-22/AL 7203246-13
• 1EL010131-22/AP 7203246-17
• 1EL010131-22/AM 7203246-14
• 1EL010131-51/AJ 7271911-08
• 1EL010131-22/AJ 7203246-11
• 1EL010131-21/AK 7203245-12
• 1LL011087-23/AF 7317133-05
• 1LL010130-23/AV 7199609-22
• 1LL010130-23/AP 7199609-16
• 1LL010131-54
• 1LL010131-531
• 1LL010131-04/AL 7203242-11
• 1LL010131-03/AL 7203241-11
• 1LL010131-23/AJ 7203247-11
• 1LL010131-24/AJ
• 1LL010131
• 1ZS010130-44/AM 7199616-13
• 1ZS010131-41/AK
• 1ZS010131-44/AM 7203254-14
• 1ZS010131-44/AP 7203254-17
• 1ZS010131-43/AP 7203253-17
• 1ZS010130-41/AG 7199613-07
• 1ZS010131-41/AP 7203254-17
• 1ZS010131-44/AT 7203254-21
• 1ZS010131-41/AI 7203251-10
• 1ZS010131-41/AK 7203251-12
• 1ZS010131-42/AI 7203252-10
• 1ZS010131-45/AM 7203255-14
• 1ZS010131-46/AN 7203256-15
• 1ZS010131-46/AJ 7203256-11
• 1ZS010131-46/AT 7203256-21
• 1ZS010131-66
• 1ZS010131-65/AJ 7271903-07
• 1ZS010131-43/AH 7203253-09
• 1ZS010131-42/AR 7203252-19
• 1ZS010131-41/AR 7203251-19
• 1ZS010130-41/AK 7199613-11
• 1ZS010131-45/AK 7203255-12
• 1ZS010131-43/AT 7203253-21
• 1ZS010130-41/AJ 7199613-10
• 1ZS010131-41/AQ 7203252-18
• 1ZS010131-63
• 1ZS010131-62
• 1ZS010131-46/AP 7203256-17
• 1ZS010131-45/AP 7203255-17
• 1ZS010131-41/AL 7203251-13
• 1EL010131-21/AJ 7203245-11
• 1ZS010131-41/AK 7203252-12
• 1ZS010131-41/AN  7203251-15
• 1ZS010131-43/AM 7203253-14
• 1ZS010131-43/AP 7271905-18
• 1EL011087-42/AO 7460602-01
• 1ZS010131-44/AI 7203254-10
• 1ZS010131-45/AR 7203255-19
• 1EL010131-21/AN 7203245-15
• 1ZS010131-61/AK
• 1ZS010131-43/AI 7203253-10
• 1EL010131-22/AI 7203246-10
• 1ZS010131-64/AL 7271906-09
• 1ZS010131-44/AR 7203254-19
• 1ZS010131-44/AK 7203254-12
• 1ZS010131-44/AN 7203254-15
• 1ZS010131-44/AQ 7203254-18
• 1ZS010131-62/AJ 7271908-08

Compatible BMW 5 series F07 GT Pre-Facelift Adaptive Xenon headlamps

• 7199614-07 1ZS010130-42/AG
• 7199614-11 1ZS010130-42/AK
• 7262726-07 1ZS010130-64/AH
• 7199615-11 1ZS010130-43/AK
• 7199615-12 1ZS010130-43/AL
• 7199615-24 1ZS010130-43/AX
• 7199615-07 1ZS010130-43/AG
• 7199615-13 1ZS010130-43/AM
• 7199614-08 1ZS010130-42/AH
• 1ZS010130-41/AH
• 7199616-08 1ZS010130-44/AH

Compatible BMW 5 series F07 GT Pre-Facelift Non Adaptive Xenon headlamps

• 7199616-11 1LL010130-54/AN
• 7199610-11 1LL010130-24/AK
• 7199609-18 1LL010130-23/AR

Compatible BMW 5 series F11 F10  Pre-Facelift Non Adaptive Xenon headlamps

• 7203248-21 1LL010131-24/AT
• 7203245-19 1EL010131-21/AR

Compatible BMW 5 series F11 F10  Pre-Facelift Adaptive Xenon headlamps

• 7203251-14 1ZS010131-41/AM
• 7203253-19 1ZS010131-43/AR
• 7271905-07 1ZS010131-63/AJ
• 7203254-20 1ZS010131-44/AS
• 63117271912 7271912-04 1ZS010131-52/AD
• 7271906-07 1ZS010131-64/AJ
• 7203253-11 1ZS010131-43/AJ
• 7271907-03 1ZS010131-61/AC
• 1ZS010131-61

Compatible BMW cars

• 5 Series F10 Saloon Sedan Pre-Facelift 2010 2011 2012 2013
• 5 Series F11 Estate Touring Pre-Facelift 2010 2011 2012 2013
• 5 Series F07 GT Gran Turismo Pre-Facelift 2008 2009 2010 2011 2012 2013
• 5 Series F07 GT LCI Facelift 2014 2015 2016 2017
• 520i 523i 528i 530i 528xi 535i 550i M5 petrol gasoline
• 520d 525d 530d 535d diesel xDrive M-Sport
