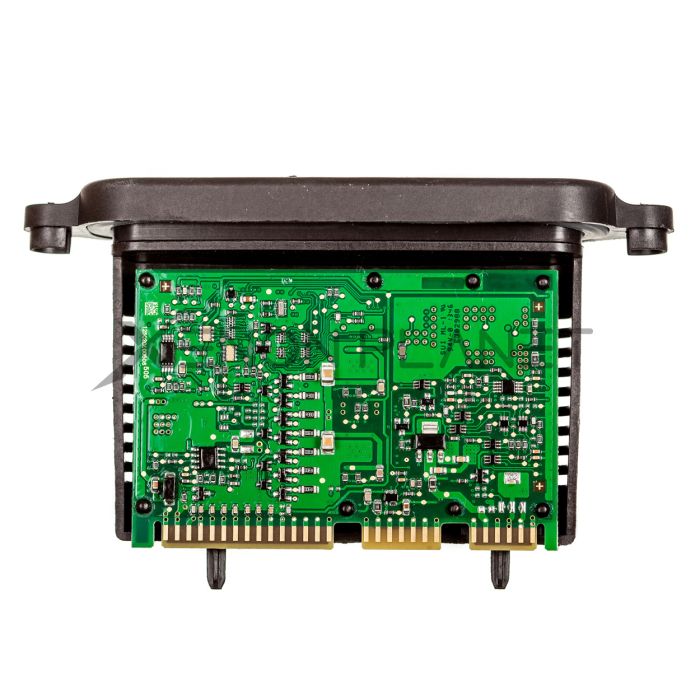

7304592 535211802 AHLF07 TMS Headlight Driver Module for bmw.

LEAR 7304592 535211802 TMS module is factory fitted to BMW 5 series F10 F11 and F07 GT Pre-Facelift cars with Adpative D1S xenon headlamps.

There are many different malfunctions when lear headlight driver module fails.

If both Angel Eyes (halo rings) have stopped to work at the same time, you are seeing vertical aim failure error on the dashboard, front turn signal doesn't work it means that module has failed and needs to be replaced as soon as possible.

To fix any of these above malfunctions you will need just to replace faulty TMS 7304592 02 module, there is no need to buy brand new headlamp unit as dealer suggests.

Coding is required after replacing old faulty genuine BMW 7304592 LEAR 535211802 AHL F07 TMS Driver headlight driver module.

The most common diagnostic trouble fault codes

800FC3 Initialization fault in left headlamp driver module
800FCC Coding errors in the right headlamp driver module
800FC2 Initialization fault in right headlamp driver module
800FC3 Initialisation fault in headlight driver module left
800FC2 Initialisation fault in headlight driver module right
800FC2 Coding errors in the right headlamp driver module
800FC7 Internal fault in STML (Left hand headlamp driver module)
800FC8 Internal fault in STML (Right hand headlamp driver module)
800FC7 lin bus, headlight driver module (TMS) right, communication fault
800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
800FC9 Lin Bus headlight driver module (TMS), right: communication fault
800F86 Daytime Driving Light / Side Light, left, faulty
800F86 Daytime running light/left parking defect
800F87 Daytime Driving Light / Side Light, right, faulty
800F87 Daytime running light/right parking defect
800F88 Output daytime driving light / side light, left, short-circuited
800F89 Output daytime driving light / side light, right, short-circuited
800FCB Headlight driver module (TMS), left, faulty
800FCE Headlight driver module (TMS), right, faulty
800FC0 LWR fault in headlight driver module, right
800FC1 LWR fault in headlight driver module, right
800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
800F40 Direction Indicator, Front Left, Faulty
800FD0 Design/Side Marker Light, Left, Faulty
8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
800F8D Abbiegelicht rechts defekt
800FC9 LIN-Bus Scheinwerfertreibermodul (TMS) rechts: Kommunikationsfehle
800FC6 Internal fault in the right headlamp module

The most common BMW warning messages

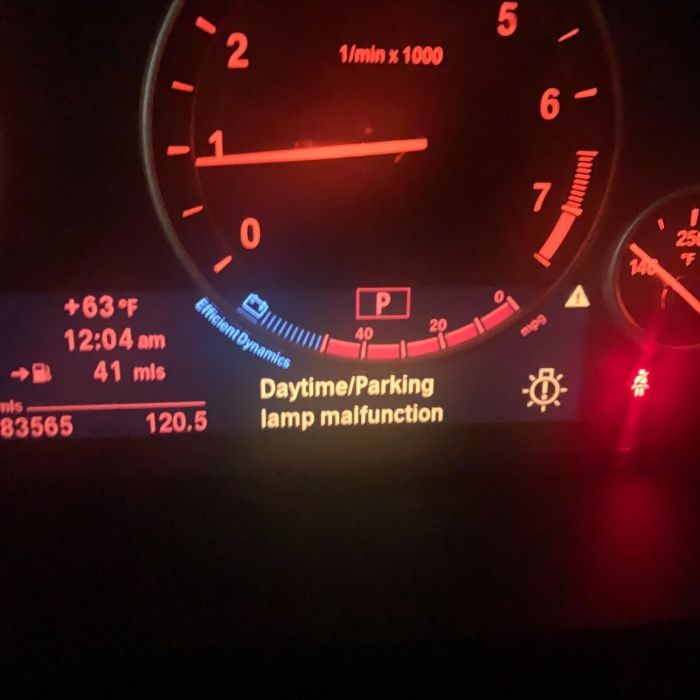

Daytime/parking lamp malfunction
Parking/daytime lights
Left turn signal malfunction
Right turn signal malfunction

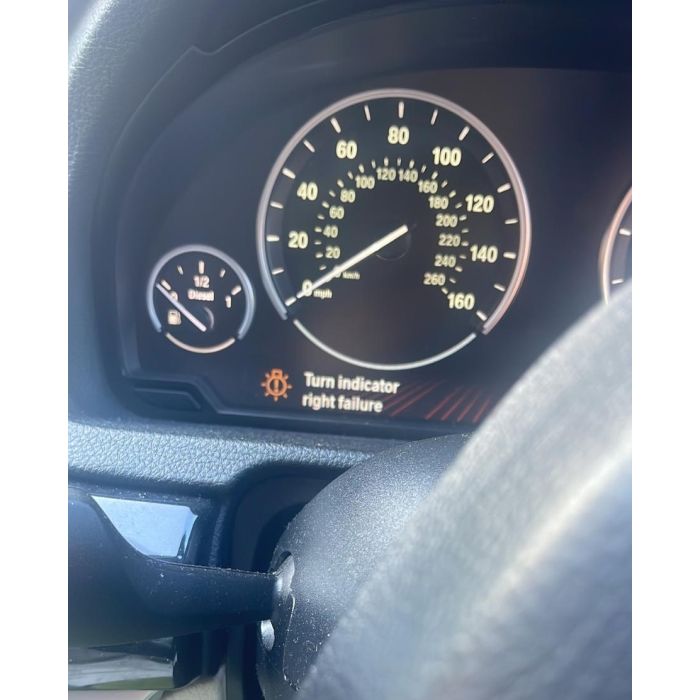

Turn indicator front left failure
Turn indicator front right failure

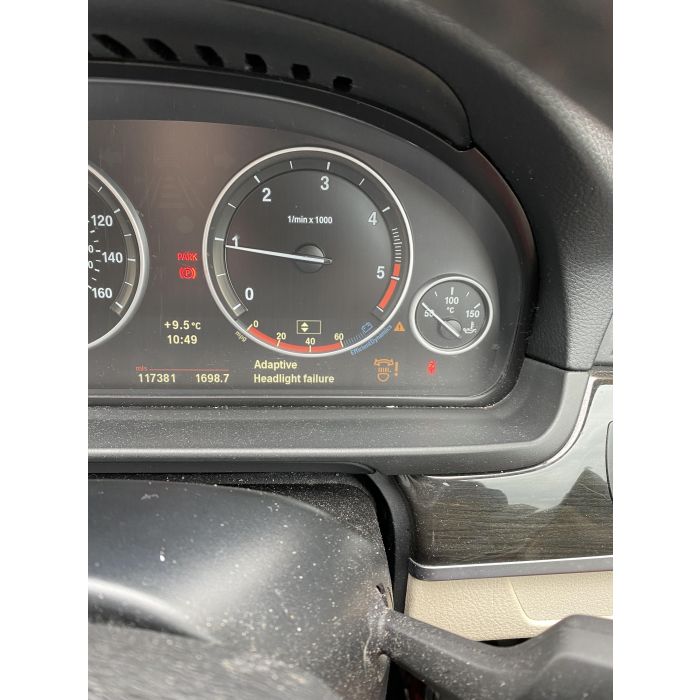

Adaptive headlights failure
Adaptive headlight malfunction

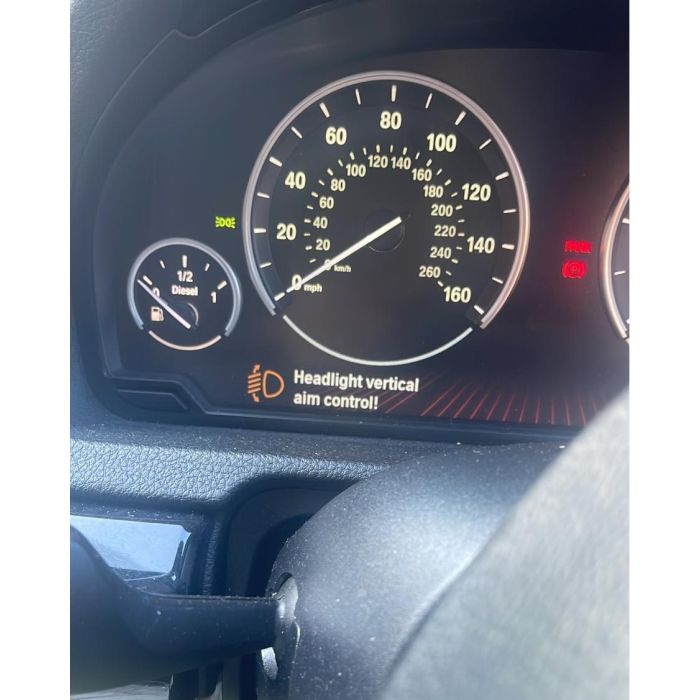

Headlight Vertical Aim Control Failure
Headlamp vertical aim control malfunction
Side/daytime lights fault
Headlight vertical aim control!
Side/daytime lights on left fault!
Side/daytime lights on right fault!
Turn indicator left failure
Turn indicator right failure
Turn Indicator front left failure!
Turn Indicator front right failure!
Left Cornering light failure
Right cornering light failure
Adaptive Lichtsysteme defekt
Leuchtweitenregulierung defekt
Leuchtweiten-Regulierung defekt

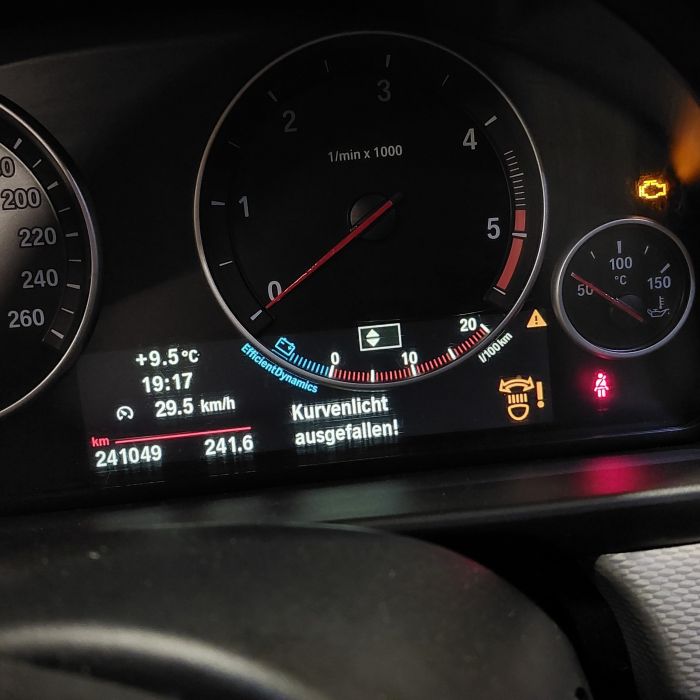

Kurvenlicht ausgefallen!
Leuchtweiten-regulierung gestort!
Blinker vorn links defekt
Blinker vorn rechts defekt
Blinker links defekt
Blinker rechts defekt
Veilleuse/feu croisement jour def.! defectueux
Panne feu de croisement de jour!
Veilleuse et feu de croisement de jour defectueux
Phares directionnels gauches défectueux
Phares directionnels droits défectueux
Panne clignotant avant gauche
Panne clignotant avant droite
Clignotant gauche defectueux
Clignotant droite defectueux
Reglage portee des phares defectueux
Defaut reglage portee des phares!
Clignotant avant gauche defectueux
Clignotant avant droite defectueux
Parkeringsljus/varselljus defekt
Blinkers vanster fram defekt
Blinkers höger fram defekt
Ljusviddsreglering defekt
Ljus Vid Reglering defekt
Kurvljus defekt
Anomalia no controlo da altura dos farois!
Pisca esquerdo com falhas
Pisca direito com falhas
Pisca Certo com falhas
Pisca luzes conduc diurna com falhas
Pisca/luzes conduc. diurna com falhas
Pisca dianteiro esq. nao funciona
Pisca dianteiro dir. nao funciona
Eclairage virage defectueux
Stand-/Tagfahrlicht links ausgefallen!
Stand-/Tagfahrlicht rechts ausgefallen!
Stand-/Tagfahrlicht defekt
Standlicht und Tagfahrlicht defekt
Leuchtweitenregulierung der scheinwerfer defekt
iLuz de pos. y cond. diurna der. averiada!
iLuz de pos. y cond. diurna izq. averiada!
Luz de posición y conducción diurna derecho averiada
Luz de posición y conducción diurna izquierda averiada
iRegulacion alcance luces!
Fallo regulacion alcance luces
Fallo de la luz de curvas
Alcance de luces
Panne veilleuse/feu croisement jour D!
Avaria luce posizione e luce diurna!
Avaria regolazione altezza fari!
Indicatore direzione sinistro guasto
Indicatore direzione destro guasto
Parkeer- en dagrijlicht defect
Richtingaanwijzer links defect
Richtingaanwijzer rechts defect
Richtingaanwijzer linksvoor defect
Richtingaanwijzer rechtsvoor defect
Defect koplampafstelling

BMW part numbers:

7304592 02
730459202
AHL F07
AHLF07

LEAR part numbers:

535211802 01
53521180201

Compatible BMW F10 F11 F07 GT headlamps part numbers

1EL010131-22/AL 7203246-13
1EL010131-22/AP 7203246-17
1EL010131-22/AM 7203246-14
1EL010131-51/AJ 7271911-08
1EL010131-22/AJ 7203246-11
1EL010131-21/AK 7203245-12
1LL011087-23/AF 7317133-05
1LL010130-23/AV 7199609-22
1LL010130-23/AP 7199609-16
1LL010130-23/AR 7199609-18
1LL010131-54
1LL010131-531
1LL010131-04/AL 7203242-11
1LL010131-03/AL 7203241-11
1LL010131-23/AJ 7203247-11
1LL010131-24/AJ
1LL010131
1ZS010130-44/AM 7199616-13
1ZS010130-44/AK 7199616-11
1ZS010131-41/AK
1ZS010131-44/AS 7203254-20 7203248-11 7203254-20
1ZS010131-44/AM 7203254-14
1ZS010131-44/AP 7203254-17
1ZS010131-43/AP 7203253-17
1ZS010130-41/AG 7199613-07
1ZS010131-41/AP 7203254-17
1ZS010131-44/AT 7203254-21
1ZS010131-41/AM 7203251-14
1ZS010131-41/AI 7203251-10
1ZS010131-41/AK 7203251-12
1ZS010131-42/AI 7203252-10
1ZS010131-43/AJ 7203253-11
1ZS010131-45/AM 7203255-14
1ZS010131-46/AN 7203256-15
1ZS010131-46/AJ 7203256-11
1ZS010131-46/AT 7203256-21
1ZS010131-66
1ZS010131-65/AJ 7271903-07
1ZS010130-43/AK 7199615-11
1ZS010131-43/AH 7203253-09
1ZS010131-42/AR 7203252-19
1ZS010131-41/AR 7203251-19
1ZS010130-41/AK 7199613-11
1ZS010131-45/AK 7203255-12
1ZS010131-43/AT 7203253-21

Compatible BMW cars

5 Series F10 Saloon Sedan Pre-Facelift 2010 2011 2012 2013
5 Series F11 Estate Touring Pre-Facelift 2010 2011 2012 2013
5 Series F07 GT Gran Turismo Pre-Facelift 2008 2009 2010 2011 2012 2013
5 Series F07 GT LCI Facelift 2014 2015 2016 2017
520i 523i 528i 530i 528xi 535i 550i M5 petrol gasoline
520d 525d 530d 535d diesel xDrive M-Sport
