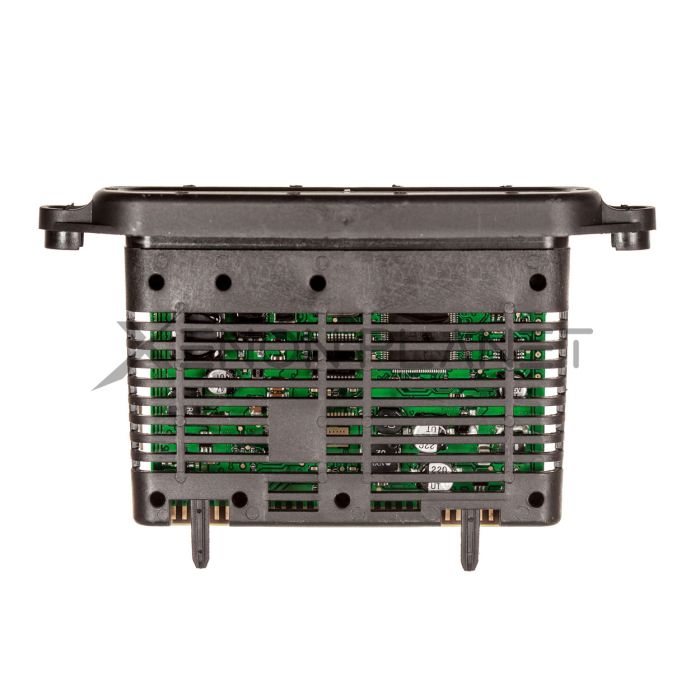

7316147 7316143 BIXF30 TMS Module

7316147 7316143 BIXF30 TMS Headlight Driver Module

LEAR 7316147 7316143 TMS Module is factory fitted to BMW 3 series F30 F31 F34 GT Pre-Facelift cars with Bi-Xenon headlamps.

LEAR TMS Headlight Driver has few part numbers, all of them are compatible with our module 7316147, 7316143.

Direct replacement Plug and play to old faulty genuine BMW 7316147 7316143 BIXF30 LEAR 535217804 00 TMS Headlight driver module.

The most common diagnostic trouble fault codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty

The most common BMW 3 series F30 F31 Pre-Facelift  warning messages

• Side/daytime lights fault
• Regolazione fari
• Headlight aim control
• Headlight vertical aim control failure

BMW oem part numbers

• 7316147 01
• 731614701

Lear part number:

• 535217804 00
• 53521780400

More compatible bmw and lear part numbers:

• 63117316147
• 7316147 02 731614702
• 535217805 01 535217805 03
• 7316147 01 731614701
• 535217804 00 53521780400
• 7316143 02 731614302
• 535217803 00

Compatible BMW 3 series F30 F31 Pre-Facelift Non Adaptive Xenon Headlamps

• 63117338706 721.51.100.02
• 63117338707 721.52.100.02
• 6311-7285689 63117285689 731.41.000.00
• 6311-7285690 63117285690 731.42.000.00

Compatible BMW cars

• 3 Series F30 Saloon Sedan Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F31 Estate Touring Pre-Facelift
• 2011 2012 2013 2014 2015
• 3 Series F34 Gran Turismo GT Pre-Facelift
• 2012 2013 2014 2015
• 316i 318i 320i 328i 335i Petrol Gasoline
• 316d 318d 320d 325d 330d 335d diesel
• ActiveHybrid 3
• M-Sport Xdrive
