7381018 535100866 TMS LED Module

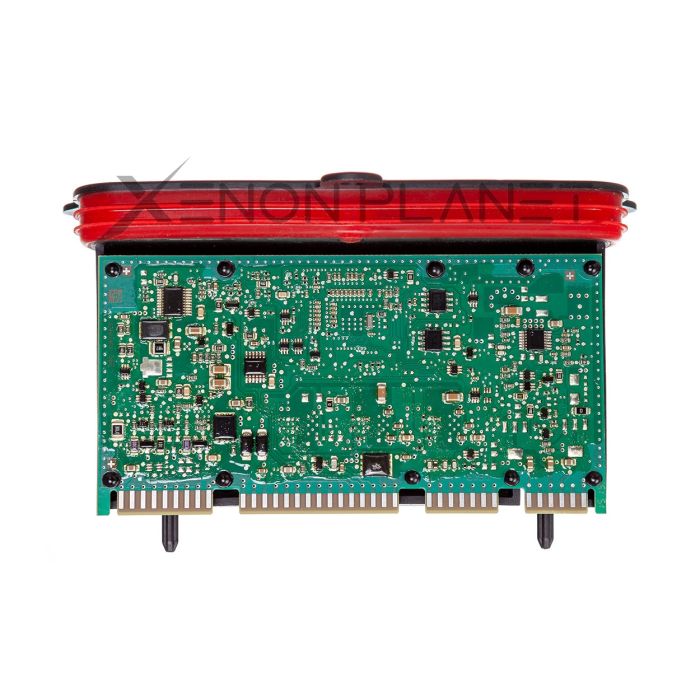

7381018 535100866 TMS LED Headlight Driver Module

BMW 7381018 TMS LED Driver module is factory fitted to 5 Series F10 F11 LCI Facelift cars with Full LED adaptive headlights, low and high beam LED light.

To identify when you need to replace headlight control module there are many different malfunctions and errors, it could show red headlight error sign, show vertical aim control failure, it means that your LED lights can't be alligned and light will be pointed downwards only, also it controls LED Angel Eyes (Daytime Running Lights) if they flicker or both rings have stopped to shine at all, LED turng signal dooesnt work or low or high LED beam doesn't work, then it means that bmw headlight driver module has failed.

These are the most common issues when you can identify, that headlight module has failed and needs to be replaced with new.

By replacing LEAR TMS 7381018 LED headlamp driver you will save massive amount of money, because BMW dealer always suggest to buy brand headlight housing, which is not necessary in this case.

LEAR 535100866 TMS headlight ballast fits passenger's or driver's side.

BMW DTC Diagnostic Trouble Codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty

The most common BMW warning messages

• Daytime/Parking lamp malfunction
• Adaptive Headlights failure
• Lighting system front left failure
• Lighting system front right failure
• Headlight vertical aim control failure
• Adaptive headlight malfunction
• Lighting system Front Left malfunction
• Lighting system Front Right malfunction
• Headlamp vertical aim control malfunction
• Left Cornering light malfunction
• Right Cornering light malfunction
• Adaptive Lichtsysteme defekt
• Leuchtweitenregulierung defekt
• Lichtanlage vorn rechts defekt
• Lichtanlage vorn links defekt
• Obrysova svetla/svetla pro denni sviceni
• Leva predni smerovka vadna
• Pravy predni smerovka vadna
• Feu position/eclairage de jour defectueux
• Eclairage virage défectueux
• Veilleuse/feu croisement jour def.
• Phares directionnels gauches défectueux
• Phares directionnels droits défectueux
• Panne éclairage de virage
• Adaptief verlichting-systeem defect
• Adaptief verlichtingsysteem defect
• Verlichting rechts voor defect
• Verlichting links voor defect
• Defect koplampafstelling
• Svinglys t.v. defekt
• Defekt lysvidderegulering
• Lysvidde
• Forlygternes lysvidderegulering defekt
• Positions-/kørelys
• Positionslys og kørelys defekt
• Adaptive lyssystemer defekt

LEAR part numbers

• 535100866 02
• 53510086602

BMW part numbers

• 7381018 01
• 738101801
• 63117381018

More compatible part numbers

• 63117440878 7440878 01 744087801
• 53510086F 01 53510086G 04
• 63117427611 7427611 01 53510086E 02
• 53510086E 03
• 63117409580 7409580 01 740958001
• 53510086B 01

Compatible BMW cars:

• 5 Series F10 LCI Facelift and M5 2013 2014 2015 2016
• 5 Series F10 LCI Facelift and M5 2013 2014 2015 2016 2017
• 5 Series F07 GT Gran Turismo LCI Facelift 2013 2014 2015 2016 2017
• 520i 528i 530i 535i 550i M5 ActiveHybrid 5 petrol gasoline
• 518d 520d 525d 530d 535d M550d xDriver diesel
