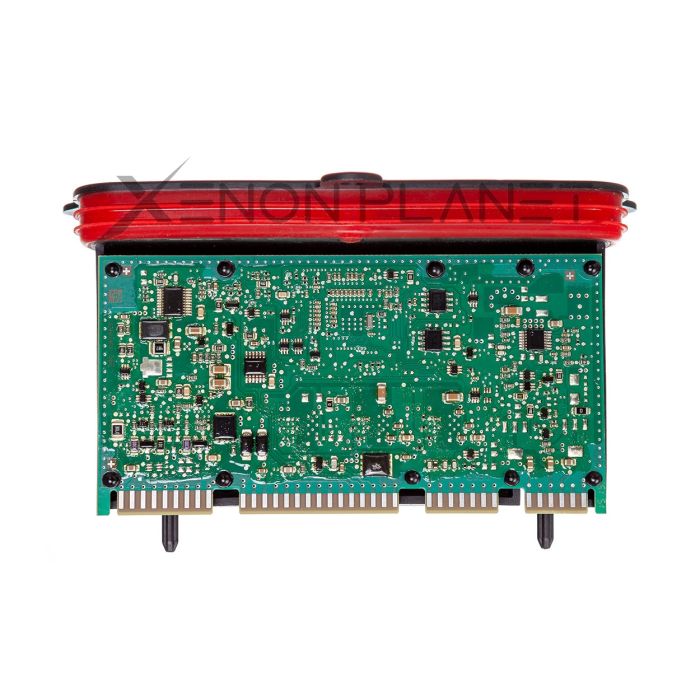

7409579 53510082B TMS BFL Headlight Driver Module

7409579 01 53510082B 00 TMS BFL Headlight Driver Module

LEAR 7409579 TMS BFL headlight module is factory fitted to BMW 5 series F10 F11 LCI Facelift cars with Adaptive D1S Xenon headlights.

LEAR TMS BFL module controls front turn signal / indicator, daytime running lights also known as halo rings, headlight vertical aim and adaptive headlights feature.

BMW 5 Series F10 and F11 Facelift LCI cars must be with factory fitted D1S Bi-Xenon Light bulbs and AHL adaptive lighting headlights.

Coding is required after replacing faulty genuine BMW 7409579 LEAR 53510082B TMS BFL headlamp driver module.

The most common diagnostic trouble fault codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 800FC8 LIN Bus koplamp driver module (TMS) links communicatiefout
• 800FC9 LIN Bus koplamp driver module (TMS) rechts communicatiefout

The most common BMW 5 serie F10 F11 LCI Facelift warning messages

• Side/daytime lights fault
• Adaptive Headlights failure
• Turn indicator front left failure
• Turn indicator front right failure
• Lighting system front left failure
• Lighting system front right failure
• Headlight vertical aim control failure
• Adaptive headlight malfunction
• Daytime/parking lamp malfunction
• Lighting system Front Left malfunction
• Lighting system Front Right malfunction
• Headlamp vertical aim control malfunction
• Left Cornering light malfunction
• Right Cornering light malfunction
• Left cornering light failure
• Right cornering light failure
• Adaptive Lichtsysteme defekt
• Leuchtweitenregulierung defekt
• Lichtanlage vorn rechts defekt
• Lichtanlage vorn links defekt
• Adaptief verlichting-systeem defect
• Adaptief verlichtingsysteem defect
• Verlichting rechts voor defect
• Verlichting links voor defect
• Defect koplampafstelling
• Parkeer- en dag-rijlicht defect
• Parkeer- en dagrijlicht defect
• Système d'eclairage avant droit defect
• Système d'eclairage avant gauche defect
• Panne éclairage de virage
• Eclairage virage defectueux
• Feu position/eclairage de jour defectueux
• Pozicijska luc/dnevna luc v okvari
• Pozicijska luc/dnevna luc
• Svinglys t.v. defekt
• Defekt lysvidderegulering
• Lysvidde
• Forlygternes lysvidderegulering defekt
• Positions-/kørelys
• Positionslys og kørelys defekt
• Adaptive lyssystemer defekt
• Lysanlaeg foran t.v. defekt
• Lysvidde-regulering defekt
• Fari adattivi in curva guasti
• Clignotant avannt gauche defectueux
• Clignotant avannt droite defectueux
• Veilleuse/feu croisement jour def.

Comptible LEAR part numbers

• 53510082B 00
• 53510082B00

Compatible BMW part numbers

• 63117409579
• 7409579 01
• 740957901

Compatible BMW and LEAR part numbers

• 63117440877 7440877 01 744087701 53510082F 02 53510082F02
• 63117427607 7427607 01 742760701 53510082D 02 53510082D02
• 53510082E 02 53510082E02 53510082E 00 53510082E00 53510082E 01 53510082E01
• 63117409579 7409579 01 740957901 53510082B 00 53510082B00
• 63117408422 7408422 01 740842201 53510082A 00 53510082A00
• 63117381017 7381017 01 738101701 535100826 02 53510082602

Compatible BMW 5 series F10 F11 LCI Facelift Adaptive Xenon headlamps

• 1ZT011087-44/AG 7378516-01
• 1ZT011087-41/AM 7410735-02
• 1ZS011087-45/AI 7378517-03
• 1ZT011087-43/AM 7410737-02
• 1ZS011087-45/AO 7424155-01
• 1ZS011087-46/AG 7378518-01
• 1ZS011087-45/AG 7378517-01
• 1ZT011087-61/AK 63117343907 7343907-06
• 1ZT011087-41/AN 7424151-01
• 7410738-02 1ZT011087-44/AM
• 7378515-03 1ZT011087-43/AI
• 7410739-02 1ZS011087-45/AN
• 7378518-03 1ZS011087-46/AI
• 7424156-01 1ZS011087-46/AO
• 7408925-03 1ZS011087-45/AM
• 7410740-02 1ZS011087-46/AN
• 7343906-10 1ZS011087-66/AO
• 63117343906
• 63117271904
• 63117343905
• 63117271903
• 7378514-03 1ZT011087-42/AI
• 63117343910 7343910-08 1ZT011087-64/AM
• 7378514-04 1ZT011087-42/AK
• 1ZT011087-91/AI
• 1ZT011087-94/AI
• 1ZT011087-93/AI
• 7378515-01 1ZT011087-43/AG
• 7378513-01 1ZT011087-41/AG
• 7378513-03 1ZT011087-41/AI
• 7424152-01 1ZT011087-42/AN

Compatible BMW cars

• 5 Series F10 Facelift LCI Saloon Sedan
• 2013 2014 2015 2016
• 5 Series F11 Facelift LCI Estate Wagon Touring
• 2013 2014 2015 2016 2017
• 520i 528i 530i 535i 550i M5 ActiveHybrid 5 petrol gasoline
• 518d 520d 525d 530d 535d 550d M550d diesel
• xDrive M-Sport
