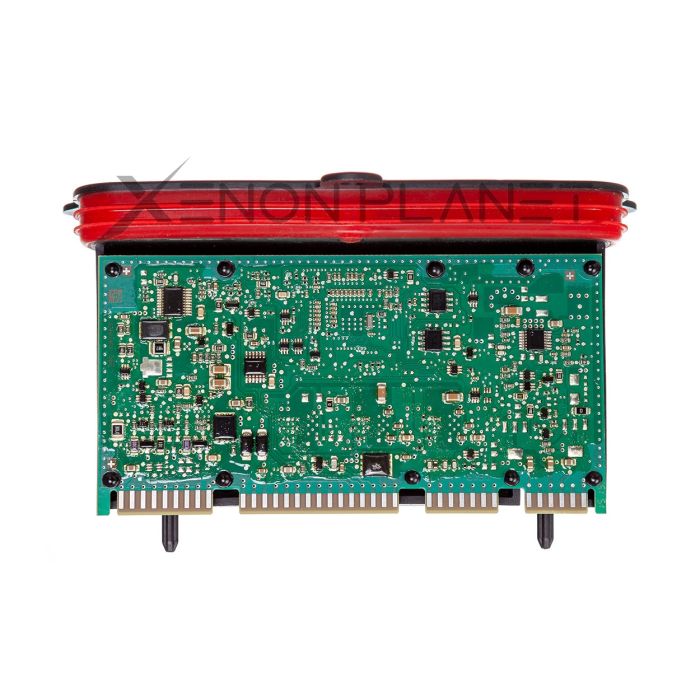

BMW 7409739 7427616 7440883 7396129 7401747 LEAR TMS LED Module

BMW 7409739 7427616 7440883 7396129 7401747 LEAR TMS LED Headlight Driver module ballast.

LEAR TMS LED Headlamp driver module is factory fitted on BMW F25 X3 Facelift LCI and F26 X4 cars with adaptive full LED headlights.

Adaptive LED headlights mean that when you turn your steering wheel, xenon lights move to the same direct as well.

Driver module needs to be replaced when you are getting various malfuction errors such as vertical aim failure error, low or high beam can't move up or down, but just stays looking down and not move up, red headlight icon, headlamp warning light malfunction error, AFS adaptive headlight failure error, LED Angel Eyes Daytime Driving Lights don't work at all or flickering, front turn signal (indicators) don't work.

There could be other type of faults or errors when headlight module fails.

No need to buy whole headlight housing as BMW dealer suggests, just replace LEAR TMS module and it will fix all of these issues.

Each headlight uses one TMS LEAR module.

It could be fitted on the left or right (passenger or driver) side headlight.

BMW DTC Diagnostic Trouble codes

• 800FC3 Initialization fault in left headlamp driver module
• 800FC2 Initialization fault in right headlamp driver module
• 800FC3 Initialisation fault in headlight driver module left
• 800FC2 Initialisation fault in headlight driver module right
• 800FC7 Internal fault in STML (Left hand headlamp driver module)
• 800FC8 Internal fault in STML (Right hand headlamp driver module)
• 800FC7 lin bus, headlight driver module (TMS) right, communication fault
• 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault
• 800FC9 Lin Bus headlight driver module (TMS), right: communication fault
• 800F86 Daytime Driving Light / Side Light, left, faulty
• 800F87 Daytime Driving Light / Side Light, right, faulty
• 800F88 Output daytime driving light / side light, left, short-circuited
• 800F89 Output daytime driving light / side light, right, short-circuited
• 800FCB Headlight driver module (TMS), left, faulty
• 800FCE Headlight driver module (TMS), right, faulty
• 800FC0 LWR fault in headlight driver module, right
• 800FC1 LWR fault in headlight driver module, right
• 800FC5 Environment Fault in Headlight Driver Module, Left (over or Under voltage, over temperature
• 800F40 Direction Indicator, Front Left, Faulty
• 800FD0 Design/Side Marker Light, Left, Faulty
• 8041F4 Headlight Driver Module (TMS) Left Daytime Driving Lights or Position Light, Left has Short Circuited
• 8041F4 Left headlight engine control unit module (TMS): Daytime running light or side light has a short circuit
• 804201 Right headlight engine control unit module (TMS): Daytime running light or side light has a short circuit

The most common BMW warning messages

• Daytime/parking lamp malfunction
• Left turn signal malfunction
• Right turn signal malfunction
• Turn indicator front left failure
• Turn indicator front right failure
• Adaptive headlights failure
• Headlight Vertical Aim Control Failure
• Side/daytime lights fault
• Adaptive Lichtsysteme defekt
• Fernlicht links defekt
• Fernlicht rechts defekt
• Abblendlicht links defekt
• Abblendlicht rechts defekt
• Leuchtweitenregulierung defekt

BMW part numbers:

• 7409739 - 63117409739
• 7427616 - 63117427616
• 7440883 - 63117440883
• 7396129 - 63117396129
• 7401747

LEAR part numbers:

• 535100C9A 00
• 535100C9G 00
• 535100C9J 01
• 535100C9K 01
• 535100C98 00

BMW compatibility list

• X series X3 F25 SUV Facelift LCI 2014 2015 2016 2017
• X series X4 F26 SUV 2013 2014 2015 2016 2017
• xDrive20i sDrive20i xDrive28i xDrive28d sDrive28i xDrive35i xDrive35i petrol gasoline
• sDrive18d sDrive20d sDrive30d sDrive35d xDrive35d diesel M-Sport
