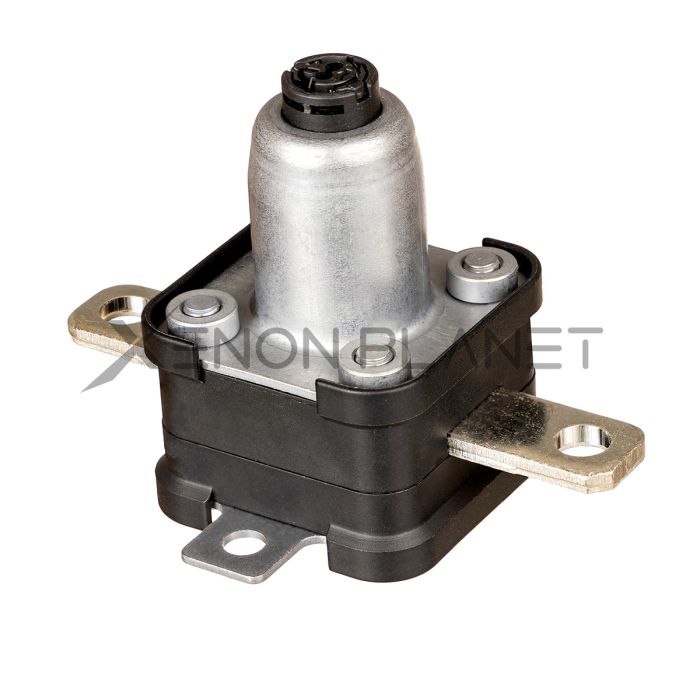

8054001G High Voltage Pyrofuse

8054001G High Voltage Pyrofuse

8054001G battery pack control module pyrofuse is factory fitted to Audi Q4 E-Tron Electric vehicles.

Other names for pyrofuse is Pyrotechnischer Aktuator Typ 8054-01.

8054001G Pyrofuse is fitted inside battery junction box.

The most common diagnostic trouble fault codes

• B18FC1B High Voltage Battery 2 Isolation igniter Resistance too high
• B18FC1B Igniter for high-voltage battery 2 Open Circuit
• P160900 Crash Shut off was triggered

Hirtenberger Automotive Safety Gmbh & Co KG part numbers

• 8054001G
• Pyrotechnischer Aktuator Typ 8054-01
• 2463-P1-000040
• 2806-P1-004822

More compatible part numbers

• 8054001G
• 8054002F
• 8054001I
• 8054001J
• -->?
• 6054002F

Audi e-Tron battery pack control module part numbers

• 4KE915253C 4KE 915 253C
• 4KE915253D 4KE 915 253D
• 4KE915253F 4KE 915 253F
• 4KE915253L 4KE 915 253L
• 4KE915250C 4KE 915 250C
• 4KE915250A 4KE 915 250A
• 4KE915250B 4KE 915 250B
• 4KE915254D 4KE 915 254D
• 4KE915253B 4KE 915 253B
• 4KE915254F 4KE 915 254F
• 4KE915254L 4KE 915 254L
• 4KE915602AA
• 4KE915253P 4KE 915 253P

Compatible Lamborghini Revuelto battery control module part number

• 0000471837

Compatible cars

• Audi Q4 F8 e-tron GT
• 2021 2022 2023
• Audi e-tron GT F8 2021 2022 2023
• Audi e-tron Sportback 2019 2020 2021 2022
• Audi e-tron S Sportback
• Audi e-tron GE 2019 2020 2021 2022 2023
• Audi e-tron Etron 50 55 Quattro Technik 71Kwh EV
• Audi E-tron S Vorsprung
• Audi Q8 SQ8 e-Tron S
• 50 55 quattro
• Audi Q8 e-Tron Sportback
• S-Line
• Audi Q8 e-tron Sportback Vorsprung 55 quattro
• Audi Q8 e-tron Premium Plus Prestige Launch Edition
• Lamborghini Revuelto HPEV
• Mid Engine Plug-In Hybrid Sports Car
• 2023 2024 2025
