Audi 80A907397C Light Control Module STD

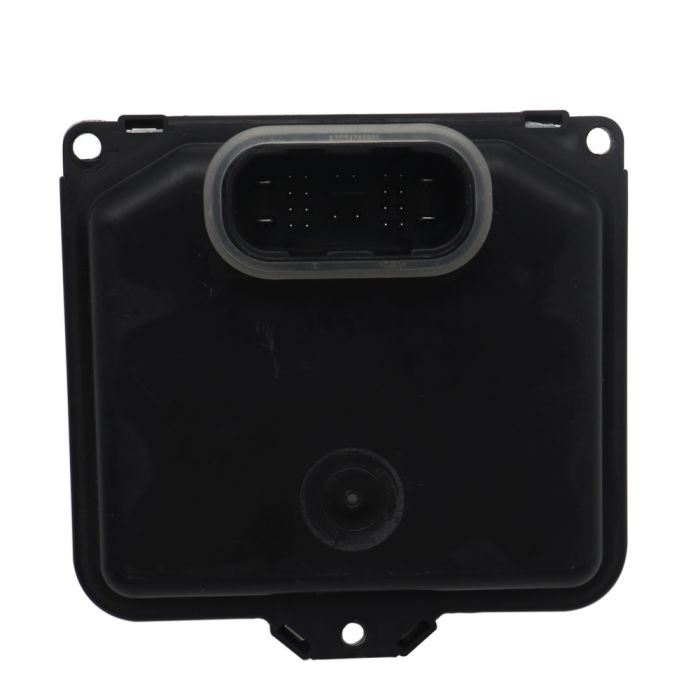

Genuine Continental A2C75315900 80A907397C Light Control Unit Module STD

80A 907 397C Control unit is responsible for LED lights of your car's headlights.

Originally fitted on Audi and VW cars with Full LED Matrix headlamps, which means low and high beam are LED lights.

If you are having LED lights malfunctions, such as low or high beam doesn't work you will need to replace LED module.

There is no need to buy brand new headlight unit from dealer.

Information from original sticker: Light-Control_Modul-STD made in mex ynf.

Coding may be required once replaced with new ballast.

The most common Audi warning messages

• Front left turn signal defective. See owner's manual
• Front right turn signal defective See owner's manual
• Front left side marker light defective. See Owner's manual
• Front right side marker light defective. See Owner's manual
• Left side light daytime running light defective. See owner's manual
• Right side light/daytime running light defective. See owner's manual

VAG OEM part numbers

• 80A907397C
• 80A 907 397 C
• 80A 907 397C

Continental part number

• A2C75315900
• A2C75315908

More compatible part numbers

• 80A907397A 80A 907 397A A2C75315714 A2C75315716
• 80A907397B 80A 907 397B A2C75315813 A2C75315808
• 80A907397D 80A 907 397D A2C74781014 A2C74781009

Compatible cars

• Audi A8 D5 4N 2017 2018 2019 2020
• Audi Q5 SQ5 FY 2017 2018 2019 2020
• Audi Q5 FY Sportback 2018 -
• VW Volkswagen Touareg CR 2018 2019 2020

Please note: this list is not full, module may fit other cars as well.
