- 8494844 FLE2MAX LED Module
Product Tags
Use spaces to separate tags. Use single quotes (') for phrases.
Product Description
8494844 FLE2MAX LED Control Unit Module also known as ballast for front headlight light electronics
AL 10EEG172157 10EEG182067 147000065600 FLE2 MAX Control Unit is factory fitted to BMW vehicles with BMW Adaptive Icon LED Headlamps to control all headlamp's functions such as Daytime Running Lights Angel Eyes, Fron turn indicator signal, low or beam lights.
If you are having any of above listed functions malfunction it might be that headlight module needs to be replaced.
Coding is required after replacing faulty genuine BMW 8494844 FLE2 MAX headlamp module.
The most common diagnostic trouble fault codes
- 805B0A FLE02_R: Classification resistor 1 invalid
- 805B24 FLE02_R: Classification resistor 3 invalid
- 8041B6 LWR System Faulty
- 8041F5 Headlight Driver Module (TMS) Left Headlight Beam Throw Adjustment Fault
- D90D32 Headlight Driver Module TMS Right Lin NO Lin-Slave
- S0311 No Communication Possible with Headlight Driver module left
The most common BMW warning messages
- Turn indicator front left failure
- Turn indicator front right failure
- High beam headlight left failure
- High beam headlight right failure
- Dipped beam left failure
- Dipped beam right failure
- Side/Daytime lights fault
- Lighting system front right failure
- Lighting system front left failure

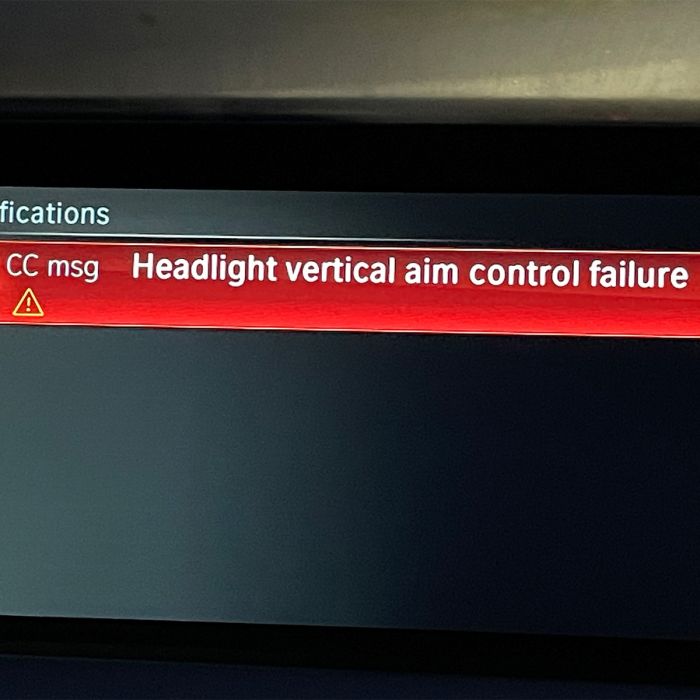

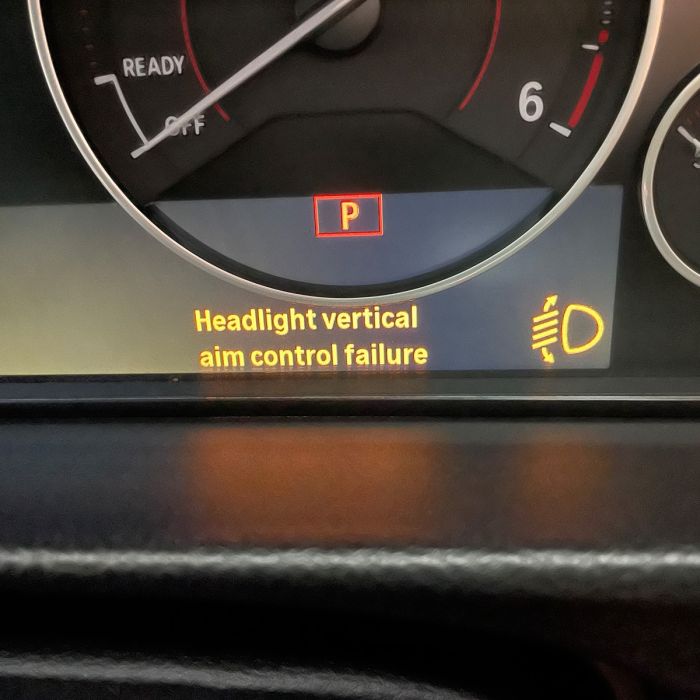

- Headlight vertical aim control failure
- Adaptive Headlights failure
- Adaptive Headlight malfunction
- Lighting system: Front left malfunction
- Lighting system: Front right malfunction
- Headlamp vertical aim control malfunction
- Fari adattivi in curva guasti
- Impianto illuminaz. anteriore dx guasto
- Impianto illuminazione anteriore dx guasto
- Reg. altezza fari guasta
- Abblendlicht links defekt
- Abblendlicht rechts defekt
- Fallo regulación alcance luces
- Fallo sist. alumbrado delantero derecho
- Fallo sist. alumbrado delantero izquierda
- Reglage portee des phares defectueux
- Systeme d'eclairage avant gauche defect
- Systeme d'eclairage avant droite defect
- Eclairage virage defectueux
- Adaptief verlichtingsysteem defect
- Defect koplampafstelling
- Verlichting. Voorzichtig stoppen
AL part numbers
- 10EEG182067
- 147000065600
- 10EEG172157
BMW part numbers
- 63118494844
- 8494844
- FLE2 MAX
- FLE2MAX
More compatible part numbers
- 63118494844 8494844 FLE2 MAX FLE2MAX
- 10EEG182067 147000065600 10EEG172157
- 7444684 147000024800 10EEG150792
- 147000025601 10EEG160265
- 7457874 147000025701 10EEG160266
- 1470000257C2 10AS15S0440
- 7434273 10EEG142363 147000024000
- 7434291 147000024100 10EEG142364
- 63117444685 7444685
- 10EEG150790 147000024600
- 147000024601 10EEG150790
- 8494843 10EEG172156
- 10EEG182066 147000065500
- FLE2HIGHAHL FLE2 HIGH AHL
- 8494842 FLE2MID
- 10EEG172155 147000065400
- 10AS17S0103 1470000654D0
- 10EEG182065 147000065400
- 7492027 147000036800 10EEG170882
- 9477748 147000070100 10EEG190410
- 7429127 FLE2 147000024300 10EEG143238
- 63117429125 7429125
- B63.11.7.429.125
- B63117429125
- FLE2 MAX FLE2MAX
- 10EEG190413 147000070600
- 7429126 147000024400 10EEG143239
- 7457871 147000025401 10EEG160263 10AS15S0437
- 9477749 FLE2HIGHAHL 147000070200 10EEG190411
- 7429789 FLE2 147000008700 10AS15S0060
- 7492028 FLE-02M
- 10EEG170883 147000036900
- 10EEG171062 147000059700
- 7434266 FLE2 147000023800 10EEG142361
- --------??_-???
- 9477750 10AS18S0057
- 1470000703D1 10AS19S0083
- 63117457875 7457875
- 10EEG160266 147000025800 10EEG160260
- 7444685 10EEG160265
- ????---???
- 7428775 7428776
- 7492027 10AS16S0308 FLE2-875
- 7429788 10AS15S0059
- 7492029 10EEG170884
- 7434273 10EEG142363
- 7457874 10EEG160266
- 7444684 10EEG150792
- 7482396 1470000359D0
- 10AS16S0214 10AS17S0109
- 7434274 147000024200 10EEG142365
- 7492024 10EEG170879
- 1470000365D0 10AS16S0305
- 7492026 147000036700 10EEG170881
- 7444686 10EEG150797
- 7457873 10AS15S0439
- 9477751 FLE2HIGH FLE2 HIGH
- 147000070400 10EEG190412
- 7444682 147000025000 10EEG150794
- 8494845 147000069700 10EEG182068
- 8494840 FLE2LOW 147000065200 10EEG172153
Magneti Marelli part numbers
- LRE703
- 147000070900
- 10EEG200172
Compatible BMW 3 series F30 F31 LCI Facelift LED Headlamps
- 7419634-01 1EX012102-02/AL
- 7419633-07 1EX012102-51/AJ
- 7419634-07 1EX012102-52/AJ
- 8738713-02 1LX012102-43/AB
- B63.11.7.419.632 63117419632
- 7419632-04 1LX012102-54/AG
- 7419631-04 1LX012102-53/AG
- 7453489-01 1LX012103-03/AL
- 63117419631
Compatible BMW 4 Series F32 F33 F36 LCI Facelift Right side LED headlamps
- 63.11-8738706-02 63118738706-02 8738706-02
- 90169744
Compatible BMW 4 Series F32 F33 F36 LCI Facelift Left side LED headlamps
- 6311-8738705-03 8738705
- 90169743
Compatible BMW 3 Series F80 M3 Left side LED headlamps
- 63.11-8738705-03 6311873805-03 8738705
- 90169743
Compatible BMW cars
- 1' F20 LCI Facelift Hatchback (05/2014 — 06/2019)
- 1' F21 LCI (05/2014 — 06/2019)
- 2' F22 LCI (09/2016 — 12/2019)
- 114i 116i 118i 120i 125i M135i M140i Petrol Gasoline
- 114d 116d 118d 120d 125d M-Sport Diesel
- 2' F87 M2 LCI (09/2016 — 12/2019)
- 2' F23 LCI (09/2016 — 12/2019)
- 2' F45 Active Tourer LCI (04/2017 — 12/2019)
- 2' F46 Gran Tourer LCI (05/2017 — 12/2019)
- 3' F30 LCI Facelift Saloon Sedan 2014 2015 2016 2017 2018
- 3' F80 M3 LCI 2015 - 2018
- 3' F31 LCI Facelift Estate Wagon 2014 - 2019
- 3' F34 GT LCI (09/2015 — 12/2019)
- 318i 320i 330i 340i M3
- 316d 318d 320d 320d ED 325d 330d 335d
- 4' F32 LCI Coupe (05/2016 — 12/2019)
- 4' F82 M4 LCI (05/2016 — 12/2019)
- 4' F33 LCI (05/2016 — 12/2019)
- 4' F83 M4 LCI (05/2016 — 12/2019)
- 4' F36 Gran Coupé LCI (05/2016 — 12/2019)
- 418i 420i 428i 430i 435i 440i Petrol Gasoline
- 418d 420d 425d 430d 435d M-Sport diesel
- i3 I01 LCI Facelift EV 2017 2018 2019 2020
- X1 F48 LCI (05/2018 — 12/2019)
- X2 F39 (10/2016 — 12/2019)
- X5 F15 (08/2012 — 06/2018)
- X5 M F85 (04/2013 — 06/2018)
- sDrive35i xDrive35i xDrive40e xDrive50i
- sDrive25d xDrive25d xDrive30d xDrive40d M50d
- X6 F16 (09/2013 — 05/2019)
- X6 M F86 (10/2013 — 05/2019)
- MINI Cooper F56 (04/2013 — 12/2019)
- MINI Cooper F55 (09/2013 — 12/2019)
- MINI Cooper Clubman F54 LCI (05/2018 — 12/2019)
- MINI Cooper Cabriolet Convertible F57 (11/2014 — 12/2019)
