A2189007306 LED Control Module

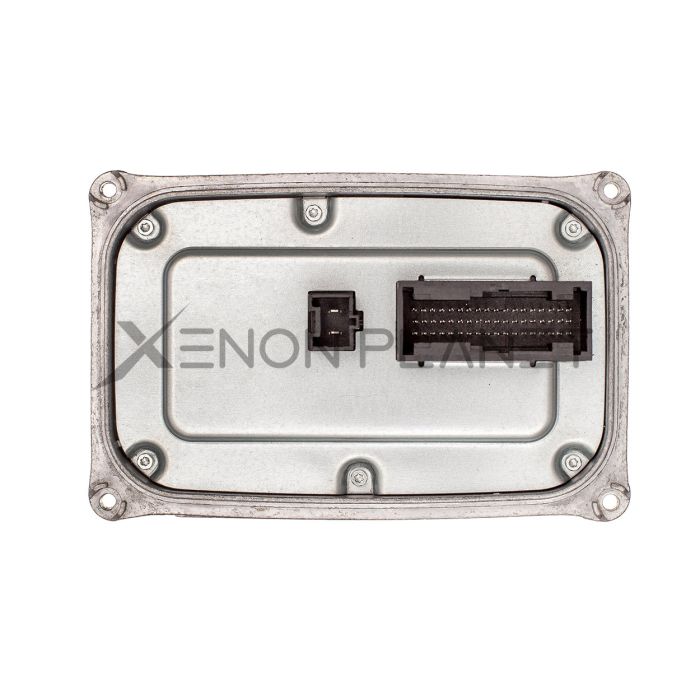

A2189007306 LED Headlight Control Module

A2189007306 headlamp module is for only Mercedes-Benz cars with Intelligent Light System ILS headlights.

Continental ballast is responsible for controlling LED lights such as low beam, high beam, daytime running lights DRL and front turn signal indicator.

Factory fitted to E-class, V-class, B-class, GLE, CLS and other mercedes cars.

Coding is required after replacing Contientnal A218 900 73 06 headlamp module.

The most common diagnostic trouble fault codes

• B1FB201 The temperature sensor 2 of headlamp range adjustment (HRA/LWR) control modulel is faulty. A general electrical fault exists
• B285711 The output for standing light 1 has a malfunction. There is a short circuit to ground
• B286011 The output for the daytime runniing light has a malfunction. There is a short circuit to ground
• B238601 Fan 1 of the control unit has a malfunction. There is a general electrical fault
• B178387 Right front LED exterior lighting actuation module fault - missing message

The most common Mercedes-Benz warning messages

• Adapt. main beam system inoperative
• Adaptive Highbeam Assist Plus Inoperative
• Intell. Light System Inoperative
• Intelligent Light System inoperative
• ILS ohne Funktion
• Intell. Light System ur funktion
• Intell. Light system virker ikke
• Intell. Light system ne fonctionne pas
• Intell. Light System ohne Funktion
• Intell. Light system no funciona
• Intell. Light system guasto
• Intell. Light system functioneert niet
• Intell. Light system nieaktywny
• Sis. Luzes inteliente inoperacional
• Intell. Light System ur funktion
• Front left indicator
• Front right indicator
• Check front left turn signal
• Check front right turn signal
• Front right parking lamp
• Front left parking lamp
• Check Front Left Parking Lamp
• Check Front Right Parking Lamp
• Front left daytime driving lamp
• Front right daytime driving lamp
• Left Dipped Beam
• Right Dipped Beam
• Check Left Low Beam
• Check Right Low Beam
• Left daytime driving lamp
• Right daytime driving lamp
• Parklicht vorne links
• Parklicht vorne rechts
• Blinker vorne links
• Blinker vorne rechts
• Abblendlicht links
• Abblendlicht rechts
• Tagfahrlicht links
• Tagfahrlicht rechts
• Luz estacionamiento delantera izquierda
• Luz estacionamiento delantera derecha
• Luz de cruce izquierda
• Luz de cruce derecha
• Luz de marcha diurna izquierda
• Luz de marcha diurna derecha
• Feu stationnement avant gauche
• Feu stationnement avant droit
• Feu croisement gauche
• Feu croisement droit
• Clignotant avant gauche
• Clignotant avant droit
• Eclairage de jour gauche
• Eclairage de jour droit
• Halvljus vänster
• Halvljus höger
• Parkeringsljus vänster fram
• Parkeringsljus höger fram
• Varselljus vänster
• Varselljus höger
• Medios direita
• Medios esquerda
• Illumin. diurna esq.
• Illumin. diurna dir.
• Prawe swiatlo mijania
• Lewe swiatlo mijania
• Lewe przednie swiatlo parkingowe
• Prawe przednie swiatlo parkingowe
• Lewe swiatlo dzienne
• Prawe swiatlo dzienne
• Parkeerlicht linksvoor
• Parkeerlicht rechtsvoor
• Dimlicht rechts
• Dimlicht links
• Dagverlichting links
• Dagverlichting rechts
• Anabbagliante destro
• Anabbagliante sinistra
• Luce diurna SX
• Luce di parcheggio anteriore sinistra
• Luce di parcheggio anteriore destro
• Parkeringslys foran til venstre
• Parkeringslys foran til hojre
• Blinklys foran til hojre
• Blinklys foran til venstre
• Drejelys til hojre
• Drejelys til venstre
• Kørelys til venstre
• Kørelys til hojre
• Korelys til venstre
• Korelys til hojre

Software and Hardware part numbers:

• HW-NR A2189012501
• SW-NR A2189025303

Mercedes-Benz part numbers:

• A2189007306
• A218 900 73 06
• MA218900730680
• MA2189007306/80

Continental part number:

• A2C74767504

More compatible part numbers

• A2189006604 A218 900 66 04 A2C74252903
• HW-NR A2189012101 SW-NR A2189026201
• A2189009904 A218 900 99 04 A2C74252905
• HW-NR A2189012101 SW-NR A2189027901
• A2129005424 A212 900 54 24 A2C73610906
• HW-NR A2129014406 SW-NR A2129024008
• A2129008222 A212 900 82 22 A2C73610904
• HW-NR A2129014406 SW-NR A2129028707
• A2129008324 A212 900 83 24 A2C73610905
• HW-NR A2129014406 SW-NR A2129024908
• A2189000406 A218 900 04 06 A2C74767503
• HW-NR A2189012501 SW-NR A2189025403
• A2129005311 A212 900 53 11 A2C73610902
• HW-NR A2129014406 SW-NR A2129020205
• A2189008108 A218 900 81 08
• SW-NR A2189012501 HW-NR A2189021706
• A2129003317 A212 900 33 17 A2C7310903
• HW-NR A2129014406 SW-NR A2129026106
• A2189007307 A2C75659702
• HW-NR A2189015801 SW-NR A2189021306

Mercedes compatibility list

• B class W246 W242 2014 2015 2016 2017 2018
• B class B160 B180 B200 B220 B250 BlueEFFICIENCY 4MATIC CDI
• CLS class C218 X218 2011 2012 2013 2014 with LED HIGH PERFORMANCE headlamps
• CLS class C218 X218 2014 2015 2016 2017 2018
• CLS class CLS350 CLS400 CLS500 CLS63 AMG CLS220 CLS250 CLS350 CDI BlueEFFICIENCY BlueTEC
• E class W212 Saloon Sedan Facelift 2013 2014 2015 2016
• E class S212 Estate Wagon Facelift 2013 2014 2015 2016
• E class C207 Coupe Facelift 2013 2014 2015 2016
• E class A207 Convertible Cabriolet Facelift 2013 2014 2015 2016 2017
• E200 E220d E250d E300 E350d E400 E550 4MATIC CGI BlueEFFICIENCY CDI BlueTEC AMG Line
• GLE ML W166 2015 2016 2017 2018
• GLE Coupe C292 Coupe 2015 2016 2017 2018
• ML GLE W166 Facelift
• 2015 2016 2017 2018
• GLE250D GLE300d GLE350D 4MATIC BlueTEC AMG Line
• GLS X166 2015 2016 2017 2018
• GLS350d
• Vito W447 Van Bus Tourer 2014 2015 2016 2017 2018
• V220d V250d
