AB3068900DG 35XT6-S-D3/12V Xenon ballast

35XT6-S-D3/12V AB3068900DG Xenaelectron Xenon Ballast

Osram Xenaelectron 35XT6-S-D3/12V Xenon Light control unit module is factory fitted on many different vehichles with D3S 35W gas discharge HID headlamps.

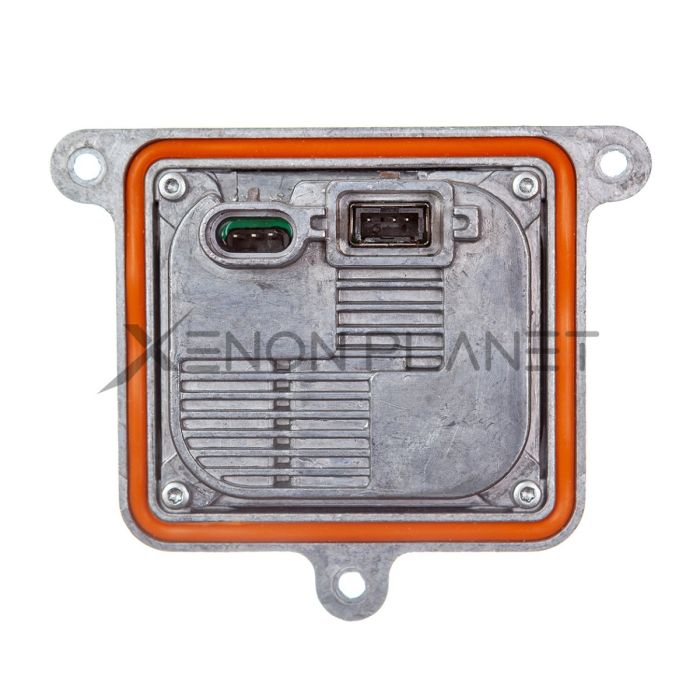

We have collected a list of compatible vehicles, if your old part looks like in the picture and car uses D3S socket bulbs, it will fit and work flawlessly.

Direct replacement to old faulty genuine Osram Xenaelectron 35XT6-S-D3/12V AB3068900DG Xenon headlight ballast module.

The most common Ford warning messages

System check
Headlamp malfunction service required

The most common diagnostic trouble codes DTCs

B1D02:15 Left high beam circuit short to battery or Open This DTC sets when the BCM detects an open from the LH high beam output circuit
B1D03-15 Right high beam circuit short to battery or Open This DTC sets when the BCM detects an open from the LH high beam output circuit
B1D02:11 Left High Beam Circuit Short To Ground
B1D02:15 Left High Beam Circuit Short To Battery or Open
B1D03:11 Right High Beam Circuit Short To Ground
B1D03:15 Right High Beam Circuit Short To Battery or Open

Osram part numbers

10R-044663
10R044663
AB3068900DG
35XT6-S-D3
35XT6-S-D3/12V

OEM part numbers

Tesla: 1029170-00 1029170-00-A 102917000A
Jaguar: C2D50948
Land Rover: LR025157
Cadillac: 22794558
Hyundai: 921904Z200
Chrysler: 68250629AA
Buick: 9065255
Ford 1710026

Compatible vehicles

Ford Focus Titanium X edition
Tesla Model S 2012, 2013, 2014, 2015, 2016
Model S 85, Model S P85+, Model S 90
Tesla Model X 2015, 2016, 2017
Chrysler 200 2015, 2016, 2017
Hyundai Santa Fe 2013, 2014, 2015, 2016
Hyundai Genesis 2013, 2014, 2015, 2016, 2017
Hyundai Sonata 2015, 2016, 2017
Chevy Malibu 2013, 2014, 2015, 2016
Cadillac ATS 2013, 2014 2015
Buick LaCrosse 2013 2014 2015
Ford Focus MK3 RS ST 2015, 2016, 2017
Jaguar XF XFR 2012, 2013, 2014, 2015
Jaguar XK XKR 2012, 2013, 2014, 2015
Land Rover Range Rover Evoque 2012, 2013, 2014
