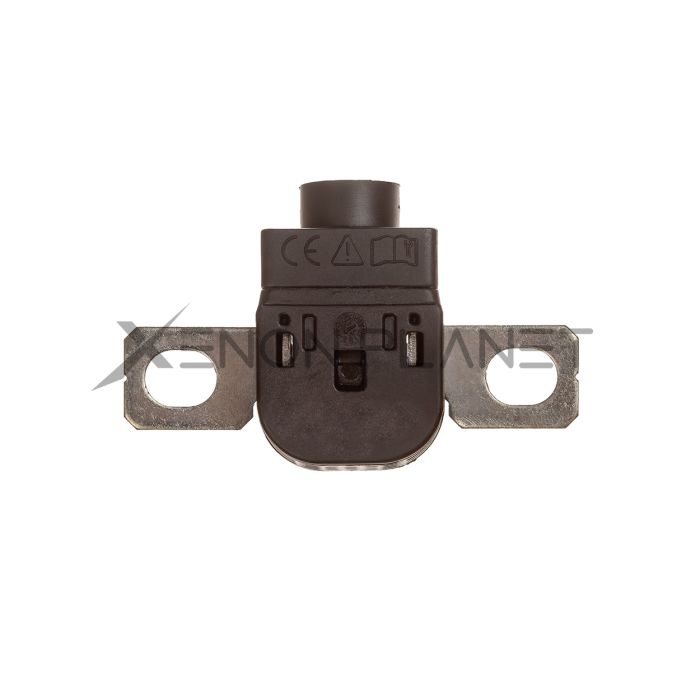

N000000008776 battery overload protection pyrofuse

N000000008776 MBN10309-PF5 battery pyrotechnical overload protection pyrofuse

N000000008776 Pyrotechnic Battery Disconnect pyrofuse fits mercedes benz A class W177 cars.

If car has been in an accident then battery overload protection trip switch fuse won't work, because it explodes to avoid even more damages to the electronic parts.

Usually pyrofuse explodes when any of the airbags have been affected.

Simple battery pyrofuse will solve this malfunction.

Information from original part: Pyrotechnisches Trennelement PTE.

After replacing positive battery terminal cable's end's connector also know as pyroswitch, you won't need to do coding.

N000000008776 crash battery overload disconnection fuse is compatible with few other part numbers, which could be found below.

Mercedes-Benz DTC diagnostic trouble codes:

• B273513 The squib for the on-board electrical network wire Pyrofuse is faulty. An open circuit exists
• B27352B The squib for the on-board electrical network wire Pyrofuse is faulty. The electrical wires have a short circuit to one another
• B00792B The squib for the emergency tensioning retractor (ETR/GUS) for belt end fitting (driver) is faulty. The electrical wires have a short circuit to one another
• B1C3200 Control Unit Supplemental Restraint system (SRS) has detected a crash

Mercedes Benz part numbers:

• N000000008776

Other part number:

• MBN10309-PF5

Mercedes-Benz current limiter part number

• A2479061803
• 755H-R2A-B4R5-004

Compatible cars:

• Mercedes-Benz A class W177 2017 2018 2019 2020 Hatchback
• Mercedes-Benz A class V177 Z177 (LWB) Saloon Sedan
• A160 A180 A200 A220 A250 4MATIC A35 A45 AMG
• A160d A180d A200d A220d A220e A250e
• Mercedes-Benz CLA C118 Coupe 2019 2020 2021 2022
• Mercedes-Benz CLA X118 Shooting Brake
• CLA180 CLA200 CLA220 CLA250 CLA35 CLA45 AMG 4MATIC petrol gasoline
• CLA180d CLA200d CLA220d 4MATIC diesel
• GLA H247 SUV 2019 2020 2021
• GLA180 GLA200 GLA220
• EQA H247 Electric Vehicle EV
• B class W247 2018 2019 2020 2021
• B180 B200 B220 B250 BlueEfficiency 4MATIC petrol gasoline
• B160 B180 B200 B220 CDI BlueEfficiency diesel
• GLB X247 2019 2020 2021
• GLB180 GLB200 GLB250 GLB35 AMG 4MATIC petrol gasoline
• GLB180d GLB200d GLB220d 4MATIC diesel
